Natural Gas LPG Gas Filter Separator with Quick Open Closure

Product Description

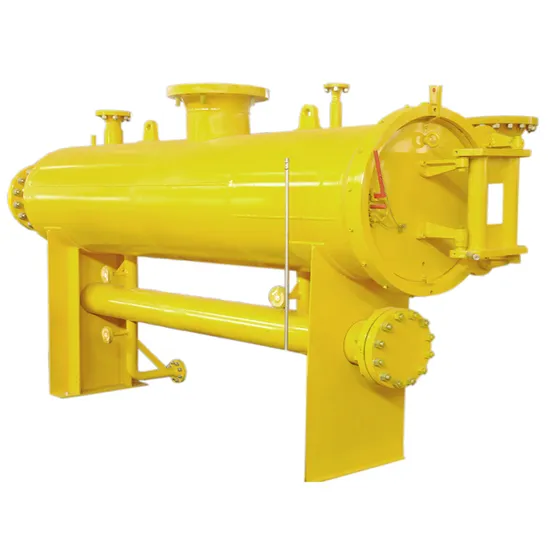

Natural Gas LPG Gas Filter Separator with Quick Open Closure
Gas cleaning equipment is an indispensable filtration device on the medium transportation pipeline. It is usually installed at the inlet end of pressure reducing valves, pressure relief valves, positioning valves or other equipment to eliminate impurities in the medium to protect downstream valves and equipment normal working, and reducing equipment maintenance costs.
Suitable place: natural gas field, gas transmission and distribution systems, gas generators and other occasions of gas purification.
Executive standard: GB150.1~150.4-2011
DATA SHEET
1. Allow Maximum Working Pressure: 9.9Mpa
2. Working Temperature: -20~+60ºC
3. Large Filter Area, Low Pressure Loss, Easy Cleaning
4. Collecting Liquid (dust) Cavity with Discharge Valve
5. With Differential Pressure Gauge Interface, Differential Pressure Table Filter Head Can Be Installed with Quick Start Structure, Which Can Quickly and Easily Open and Close the Filter
6. Cleaning, Replacement of Filter is More Convenient
7. Connection: 180 Degrees Straight or 90 Degree Right Angle
8.Flange Standards: HG/T 20592~20615, GB/T 9115~9119, ANSI B16.5
Filter Element
Material: Stainless Steel Screen and Felt Polyester
Filter Accuracy: 5μm, 10μm, 20μm, 50μm
Filter Efficiency: Reach 99.9%
Filter Element Type: G1.0-G1.5-G2.0-G2.5-G3.0-G4.0-G4.5-G5.0-G6.0-G8.0-G10-G12
Our sale network spread all over the country and exporting to abroad. We are high quality supplier of China National Petroleum Corporation, China Petroleum& Chemical Corporation, China Resources Gas, PetroChina Kunlun Gas Ltd, Shenzhen Gas Corporation Ltd, Chengdu City Gas, Chongqing Gas Corporation Ltd. As good quality and service to became each gas group's training base for regulator equipment care and maintenance, set up good industry brand position.

---
