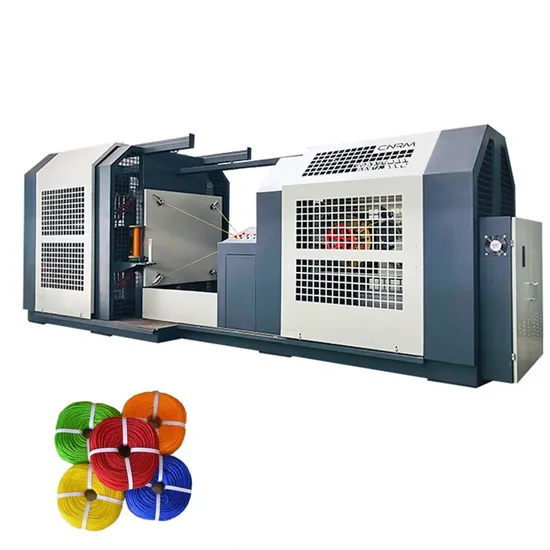

Cnrm 3 or 4 Strand PP Plastic Rope Making Machine Rope Twisting Machine Maquina PARA Hacer Cuerdas De Plstico Machine Corde En Plastique

Product Description

Product Description
Product Description
Customer Satisfaction Index: 100% Turnkey Solution For Rope Production Project
Related machiners
We can supply the whole production line for making pp ropes and twine (Extruder--Yarn twisting machine- rope making machine--packing machine).
Product Parameters
CNRM Plastic Rope Twine Extruder PP Rope Twisted Machine Plastic Production Line
Our Plastic pp rope making equipment can make 3 strand or 4 strand twisted ropes in different material, such as pp, pe, nylon, cotton and so on. The rope range from 3mm to 32mm. The Plastic pp rope making equipment is very popular in Africa, Middle East, South America and Southeast Asia such as Kenya, Algeria, Sudan, Egypt, Mexico, Vietnam
and so on. We have helped many customer in these area to set up their own plastic rope or fishing net making factory.

Item	HDTM-M33	HDTM-M44	HDTM-M55	HDTM-M66	HDTM-M77
Rope Range	3-10mm	6-14mm	12-22mm	18-26mm	22-32mm
Lay Range	15-38mm	20-50mm	32-78mm	40-105	45-130
Power	5.5kw	7.5kw	11kw	18.5kw	20kw
Take-up capacity	Φ130*Φ500*Φ320	Φ130*Φ600*Φ400	Φ130*Φ600*Φ400	Φ140*Φ700*Φ450	Φ200*Φ550*Φ650
Size of pay-off bobbin	175*300mm(8)	175*300mm(8)	175*300mm(8)	175*300mm(8)	175*300mm(8)
Qty of 8" bobbin	8*3 or 8*4	24*3 or 24*4	32*3 or 32*4	46*3 or 46*4	64*3 or 64*4
Machine weigth	3200kg	5300kg	7200kg	10000kg	13000kg

Our Advantages
Key Features
-Power transmission by timing belts.
-Auto stop after yarn breakage to control wastage.
-Digital length counter meter.
-Door Sensor.
-A.C. frequency drive.
-Direct coiling head. No need packing again. Material Choose
All of our machinery parts or electrical devices are in line with national standards
Special Treatment of CNRM PP Plastic Rope Making Machine for twisting rope -for rope cradle and strand cradle, make the coating fullness and uniform, has good wear resistance and corrosion resistance
-Galvanization treatment for rope roller and flyer arm, make color zinc plated, the work piece anti-rust and beautiful.
Detailed Photos
Detailed Images
Company Profile
After Sales Service
Our Service
Pre-sale service
* Inquiry and consulting support.
* Sample testing support.
* 24 Hours online consultation
* Visit our factory at anytime.
After-sale service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
These 4 strand polypropylene rope making machine pictures are taken from our customer factory during machine installation. We got very good feedback from them. Customer satisfaction is our greatest happiness
Packaging & Shipping
Packing & Delivery
The CNRM 3 Strand PP Plastic twisted rope making machine need one 40FT container, the machine will be fixed tightly in the container.

FAQ
Q: Do you have after-service? A: Yes, we have reliability after-sale team, we can send engineers to your factory for installing the machine and teaching the staff using the machine skillfully.
Q: What is the material you use? A: We use new strong material at main axis, which is important for stability, use time, running smooth,and produce the product more attractive. Good quality motor and electrical parts ,guarantee the use time and running of the machine. We can change the motor brand as you need.
Q: Does one machine can make all size ropes? A: No, each model machine has its' working range, for example, M33 rope machine, it is suitable for making 3-10mm ropes, and M44 is making 6-14mm rope, M55:12-20mm rope, M66: 18-26mm, M77: 22-32mm rope, so please let me know what size rope you want to make, then i will give you best suggestions.
Q: How long is the delivery time? Can i see your machine videos? What is the payment item? If you have another questions, pls feel free to contact me in below.

---
