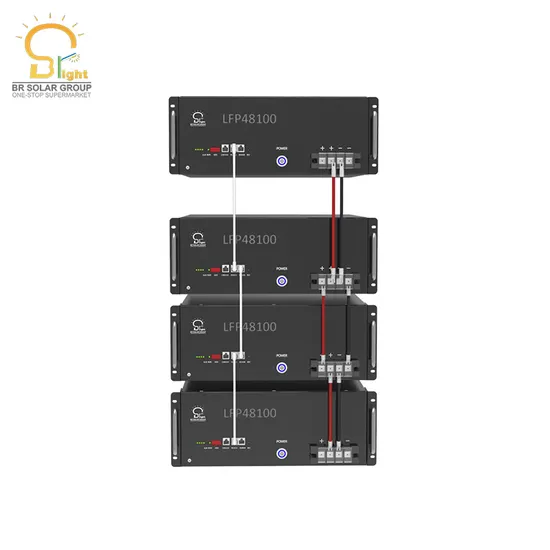

3kw 5kw 10kw Household Solar Energy System Cells LiFePO4 Li-ion Lithium Battery

Product Description

Specification
1.Size and Weight

Product	Nominal Voltage	Nominal Capacity	Dimension	Weight
LFP-48100	DC48V	100Ah	453*433*177mm	≈48kg

2.Performance Parameter

Item	Parameter value
Nominal Voltage(v)	48
Work Voltage Range(v)	44.8-57.6
Nominal Capacity(Ah)	100
Nominal Energy(kWh)	4.8
Max.Power Charge/Discharge Current(A)	50
Charge voltage (Vdc)	58.4

Interface Definition
This section elaborates the interface functions of the front interface of the device

Item	Name	Defintion
1	SOC	The number of green lights shows the remaining power.Table 2-3for details.
2	ALM	Red light flashing when an alarm occurs, red light always on during protection status.After the condition of trigger protection isrelieved, it can be automatically
3	RUN	Green light flashing during standby and charging mode. Greenlight always on when disc
4	ADD	DIP switch
5	CAN	Communication cascade port, support CAN communication
6	SA485	Communication cascade port, support 485 communication
7	RS485	Communication cascade port, support 485 communication
8	Res	Reset switch
9	power	power switch
10	Positive socket	Battery output positive or parallel positive lin
11	Negative socket	Battery output negative or parallel negative lin

The whole module is non-toxic, non-polluting and environmentally friendly;
Cathode material is made from LiFePO4 with safety performance andlongcycle life;
Battery management system(BMS)has protection functions includingover-dis-charge, over-charge, over-current and high/low temperature;
Small size and light weight, comfortable for installation and maintenance.
Packing & Shipping
Project of BR SOLAR Our Projects are applied all around the World We Choose A Quality Material, Quality Is Our Culture.So Our Solar Products Have Been Successfully Applied In More Than 110 Countries Including UN Projects and NGO Projects.
Certificates Of BR SOLAR
Payment Terms and Delivery

Payment Terms	T/T	EXW	30% In Advance, 70% Balance Paid Before Delivery
		FOB
		CFR/C&F	30% In Advance, 70% Against Copy Of B/L
		CIF
	L/C	Total Amount Above USD100,000, We Accept L/C At Sight
	West Union	Total Amount Less Than USD1,000
	PayPal
Delivery Time	15-20 Working Days After Receiving Down Payment

Welcome to visit our company website for more information:assolar.en.made-in-china.com

---
