Basic Info.
Conduction Type
Fiber Laser
Scanning Range
Line 0-50mm
Cooling Method
Water Cooling
Air Pressure Requirement
4-6bar
Transport Package
Packing
Production Capacity
500sets/Month
Product Description

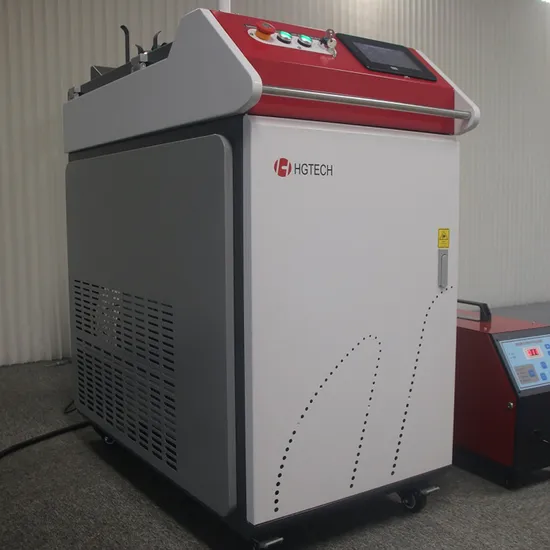

SMART HWE Series
3 in 1 Handheld Fiber Laser Welding and Cleaning Machine
Product Description
Do you have headaches because of the following problems?
1.Need to weld metal but suffer from surface rust ,paint and oil dirt 2.Chemical cleaning damage to raw materials, manual grinding can't clean well
3.Independent laser cleaning machines are expensive and less used....
Same price as laser welding machine we have brand new Smart HWE!
Product advantage
1.Fast switching :One machine with multiple functions
2.For workshop:One machine can do all the work, saving space and cost
3.For large production factory:Modify the capacity allocation at any time, and there are no more idle machines
4.Laser welding is simple in operation, low in consumption and long in service life.
5.Safer and more environmentally friendly.
Detailed Photos
Product Parameters
MODEL NUMBER
| SMART - HWE
|
Conduction type
| fiber laser
|
Wavelength
| 1080mm
|
Power
| 1.5KW/2KW/3kw
|
Frequency
| 20-5000KHz
|
Scanning range
| Line 0-50mm
|
Output focal length
| 120mm
|
Cooling method
| Water cooling
|
Fiber length
| 10M
|
Port
| 1 way gas
|
Power consumption
| ≤6KW
|
Air pressure requirement
| 4-6Bar (Select nitrogen,argon according to process requirements.)
|
Electricity demand
| 1.5KW-AC220V/50/60Hz 2KW/3KW-AC380V/50/60Hz
|
Sample
Company Profile
About UsWuhan Huagong Laser Engineering Co.,Ltd is one of the largest laser equipment manufacturers in China. HGLASER is the main subsidiary company of Huagongtech Co., Ltd. (Stock code: 000988)HGLASER is a national key high-tech enterprise, possessing technology centers and provincial key laboratories. Relying on the National Engineering Research Center for Laser Processing, National Key Laboratory for Laser Technology and Exhibition Center for Laser Technology Processing, HGLASER undertakes national key projects and scientific research projects.
Wuhan Huagong Laser Engineering Co.,Ltd possesses HGLASER and FARLEY LASERLAB two famous brands. HGLASER has always been committed to providing broad and comprehensive laser manufacturing solutions in industrial manufacturing field, researching, manufacturing and selling various laser processing and plasma machining equipments, providing tube laser cutting processing and oil pipeline trade services. The main products of HGLASER cover the full power series of laser cutting systems, laser welding systems, laser marking series, laser texturing equipments, laser heat treatment systems, laser drilling machines, laser devices, all kinds of support devices, laser processing and plasma machining equipments, which are used widely in metallurgy, non-ferrous metals, automobiles, parts, aviation, precision instruments, machine manufacturing, hardware, integrated circuits, semiconductor manufacturing, solar, education, communication and measurement, packaging, leathers, plastics, rubbers, jewelries, crafts, medical equipments, etc.
FAQ
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact -China HGLaser!
Need more information please feel free to contact us-HGLaser!---Right Now!!
