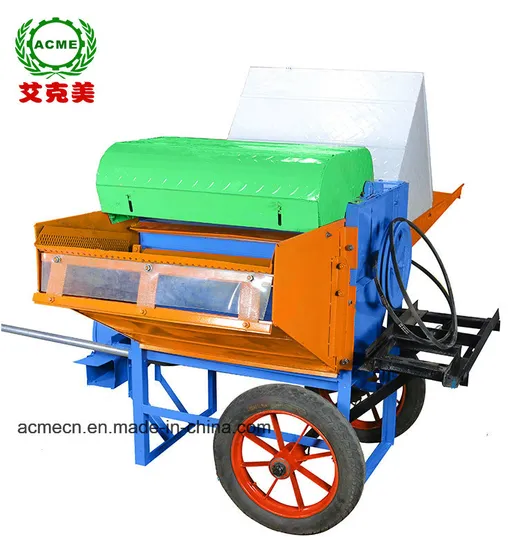

Fram machine widely used grain thresher for rape seeds
This product is mainly used for threshing rapeseed, can be used with motors, gasoline engines and diesel engines. It is stable in operation, with little jitter and super stability. It can process about two or three acres of land per day, and the threshing efficiency is high and clean.
Specifications for rape thresher
|
Model
| 5TG-180
|
Structural form
| full feed of rape (non-mechanical clamping) with separation, cleaning
|
Spindle speed
| 800-900 rpm
|
Roller diameter
| 390mm
|
Roller length
| 600mm
|
Roller form
| arched
|
Productivity:
| 150kg/h
|
Power consumption
| 2 degrees/h
|
Motor Model
| YL90L2 2200
|
Motor power
| 2.2kw
|
Accessories include
| feed hopper, V-belt, motor wheel, travel wheel, cleaner, push rod, power frame, vibrating screen, protective cover.
|
Packing size
| thresher: 1380*1650*1160mm
|
Motor: 1365*230*230mm
|
Weight
| Thresher:95kg
|
Motor:22.3kg
|
Optional power
| Thresher without power
|
Thresher+3kw motor
|
Thresher+170 gasoline engine
|
Tthresher+173 air-cooled diesel engine
|
