Low Energy Small Twin Roll Mixer Suitable for The Needs of Environmentally Friendly Factories

Product Description

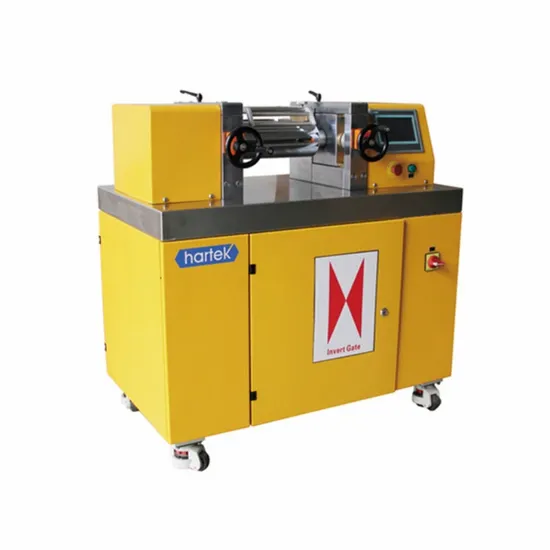

About Lab Two Mill Roll
*Applicable for mixing of general-purpose plastics, PVC, and rubber elastomers.
*The steel rolls are made of high-quality tool steel, chrome-plated, and mirror-polished, with a Rockwell hardness above 60.
*The steel rolls are driven by a Siemens motor.
*Protection devices are installed above the steel rolls.
*Reversal door with emergency braking device.
*Manual adjustment of roll gap, with an accuracy of 0.01mm.
*Siemens TFT touchscreen and Siemens PLC centralized control system, highly intelligent and easy to operate.
*Mechanical and electrical dual safety protection, meeting CE safety standards.
*Formula storage. Technical Parameters

Model	HTR-120	HTR-160
Sheet Thickness	0.2~2mm	0.2~2mm
Roller Diameter	120mm	160mm
Roller Width	300mm	400mm
Heating Method	Electric/Oil Heating	Electric/Oil Heating
Max. Temp.	300ºC	300ºC
Temp. Accuracy(ºC)	±2ºC	±2ºC
Motor Power	4kw	5.5kw
Weight	450kg	530kg
Dimension L×W×H	1100×648×1112mm	1198×648×1112mm

FAQ:
1.Where is our factory?
Hartek: Our factory is located in guangzhou city, guangdong province, China, about one hour by car from guangzhou baiyun airport . All our clients from home or abroad, are warmly welcome to visit us!
2.Why choose us?
Hartek:(1)We have complete system of designing of our equipment.
(2)We can provide the perfect management solutions.
(3)We master the core techonology in this extruder industry.
3.What's the payment method?
Hartek: We accept by T/T ,Western Union,Paypal. 30% down payment should be paid after contract is valid, 70% balance should be paid before shipment.
4.Can we see the running machine in your factory?
Hartek: Yes.Before making your decision buying the equipment or not,you can bring some material here to test-run the equipment.
5.How long of the warranty time?
Hartek:We offer you high quality machines with 12 months guarantee.
6.What is your packaging?
Hartek: After doing the anti-rust treatment, wrap the plastic film around the machine and then fix the machine on the standared export wooden boxes.
7.How can we check the machines before delivery?
Hartek:We can provide online checking when testing the machine on site. We will take and prepare detailed testing videos for your checking before the delivery.

---
