Evaporative Cooling Pad Production Line

US$53,000.00-65,000.00 1 set (MOQ)

Basic Info.

Automation
Automatic
Suitable for
Paper
Paper Thickness
Normal Specification Paper
Model
7090/7060/5090
Voltage
220V/380V/Customized
Frequency
50Hz/60Hz
Dimension(L*W*H)
30*10*6m
Motor Rotational Speed
960rpm
Blades Rotational Speed
960rpm
Drive Type
Motor-Drive
Zinc Coated Thickness
275g/Sqm
Weight
9tons
Material
Iron +304ss
Color
Blue/Yellow/Cutomized
Transport Package
Standard Export Paper Carton
Specification
International Standard
Trademark
Yuyun Sanhe
Origin
China(Mainland)
Production Capacity
1sets/20days

Product Description

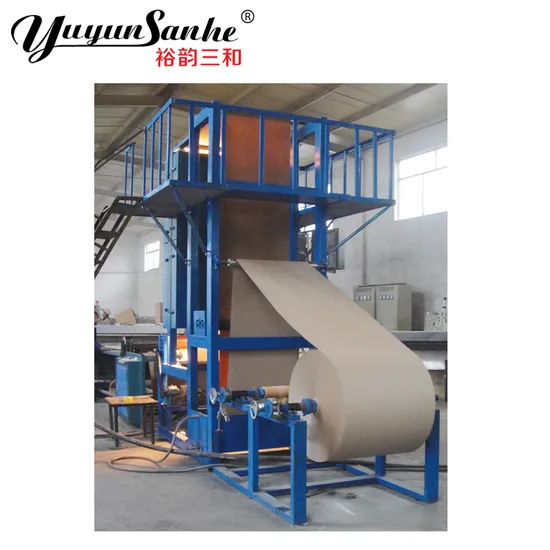

Evaporative Cooling Pad Production Machine
Professional Machinery ,Quality guaranteed ,Price reasonable! Reasonable structure, Stable running, High efficiency!

Technical Parameter:
Item Resin Machine (m) Paper Cutting Machine (m) Corrugated Machine (m) Gluing Machine (m) Heating Oven (m) Sawing Machine (m) Electric control system (m)
Volume 3.6*3.35*4.15 1.95*0.4*1.45 3.05*0.55*1.35 2.7*0.8*1.75 9.2*3.8*2.95 4.3*2.8*2.5 1.4*0.6*3.75
Power 70KW/H 0.5KW/H 18KW/H 1.5KW/H 70KW/H 2.2KW/H
Product Description:

Resin Machine
1.High quality stainless steel to ensure never rust under high temperature condition.
2.Adopt 8 digital control, easy operation, uniform temperature, higher heating efficiency, lower electricity consumption to improve cooling pad quality.
Corrugated Machine
Model: 5090/6090/7090
Adopt wear resistant bushing which is made of special material, withstand high temperature, longer service life.


Glue Machine
Widen glue machine to improve working efficiency and reduce intensity.
Heating Oven
Inner circulating heating oven to achieve multi-direction heating, quick temperature rising. high efficiency ,lower drying cost.


Sawing Machine
Use the high quality sawing blade to ensure the cooling pad no burrs on surface

About our Company
Shandong Yuyun Sanhe Machinery Co.,Ltd is the biggest and the most professional manufacturer of ventilation equipment in
China,equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry.
