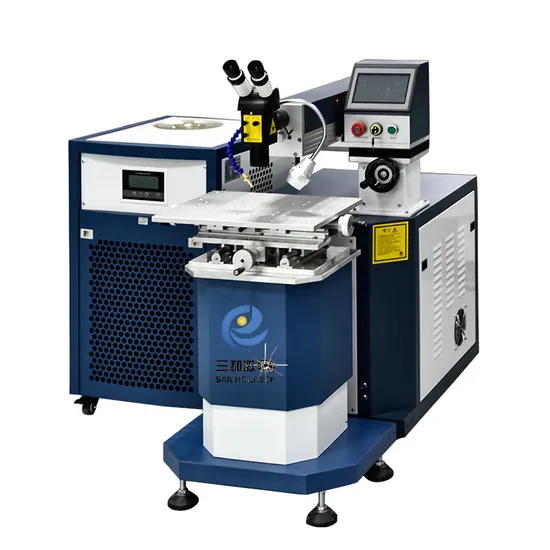

Mould Laser Welding Machine, Mould Repair, Metal Patching Equipment

Product Description

Product Description

Control Interface

Product Parameters

Model	3HE-MJ200W	3HE-MJ300W	3HE-MJ400W
Max laser power	200W	300W	400W
Laser type	ND:YAG
Laser wavelength	1064nm
Laser spot adjust range	0.2mm-3.0mm optional
Spot size	0.2-3.0mm
Pulse width	0.1ms-25ms
Welding depth	≤0.6mm	≤0.8mm	≤1.2mm
Pulse frequency	≤100Hz
Machine power	6KW	10KW	12KW
Control system	Single chipmicrocomputer
Aiming and positioning	microscope,CCD,red light
Host system size	1170*1250*560mm
Electricity demand	220v/380v 50Hz 60A
Table load	150kg

Product Application

1.Mold laser welding machine is widely used in: precision injection molding, die casting, stamping and other molds, stainless steel made of hard materials such as cracks, collapse, edge grinding and wear sealing edge repair, welding, chain, jewelry, electronic components, sensors, precision machinery, communications, connectors, data lines, crafts and other industries. 2.Mold laser welding machine, repair machine to 50-60 degrees of temperature, mold, precision injection molding, die casting, stamping, stainless steel and other hard materials crack, collapse, edge and damage sealing edge repair, welding; Dot positioning, small workpiece welding, high accuracy, laser solder joint diameter is only 0.2mm~3.0mm; The heating area is small, the workpiece will not be deformed; After welding can be etched, does not affect the effect. Product Advantage

1.The laser head can flexibly adjust the welding Angle position of 360°, which is suitable for any side welding of various molds. For large molds, a lifting arm can be added to weld molds directly on the ground or on a forklift truck. 2.Table base electric lifting, table moving using precision ball screw and high precision straight guide rail light, flexible positioning accurate. Laser head can slide back and forth, manual lifting. Simple Display

Enterprise real shooting

Exihibition Time

Corporate Honor
Packing&Shipping
Sincerely looking for agents in the world, looking forward to establishing
long-term friendly cooperative relations with foreign trade companies! Sales mangaer:Mr. Waylon

---
