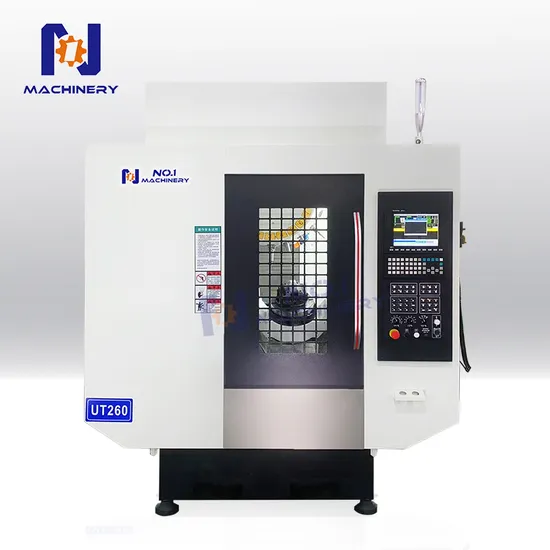

Ut260 Drilling and Tapping Machine 5-Axis Drilling and Tapping Machining Center for Metal

Product Description

Product Description
Application:
The drilling and tapping center is a kind of metal-cutting machine tool. It integrates drilling and tapping functions. With a high-speed spindle and a precise feed system, it can achieve efficient and accurate machining. It is widely used in industries like 3C and precision hardware. It offers high machining efficiency, excellent accuracy, and a high degree of automation. The whole machine adopts marble bed:
5-axis 5-linkage with dual direct motor drive;
RTCP tool tip following function;
Oil cooler and tool setting instrument;
Z-axis overall heightening:50mm/100mm/150mm.
Product Parameters

Name	Unit	UT260
Three-axis travel	mm	600*450*330mm
Worktable (rotary table) dimensions	mm	φ260mm
Maximum workpiece load and dimensions	kg	60kg, maximum workpiece rotation diameter φ400
Spindle specifications		BT30-100-short nose direct type (optional TN35-φ110)
Distance from spindle end face to worktable	mm	55-385mm (column heightened 150 + base heightened 50)
Three-axis screw	mm	XY:φ28 Z:φ32
Three-axis axis rail	mm	XY ball 30#, Z axis 30# roller
Tool magazine	t	BT30-21T
Five-axis cradle specifications		DRT260-400
A-axis travel (tilt axis)	°	±120°
A-axis maximum speed	rpm	60rpm
A-axis rated torque	N.m	259N.m
A-axis positioning accuracy	″	±10″
A-axis repeat positioning accuracy	″	5″
C-axis travel	°	360°
C-axis maximum speed	rpm	386rpm
C-axis rated torque	N.m	122N.m
C-axis positioning accuracy	″	±10″
C-axis repeat positioning accuracy	″	5″
Brake method		Air brake
Optical machine dimensions	mm	1740*1800*2180 (with standard cradle)
Optical machine weight	kg	About 2500

Detailed Photos



Packing & Delivery
wooden box
Company Profile
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 30,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.




FAQ
1. who are we?
We are based in Shandong, China, start from 2016,sell to Domestic Market(95.00%),North America(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Milling Machine,Vertical Machining Center,CNC Lathe,Lathe Machine,Drilling Machine
4. why should you buy from us not from other suppliers?
We specialized in manufacturing & exporting machine tools to the world for many years. Our factories are keeping develop and produce innovative high-tech machine tools for the metal-working industries every year. We also provide excellent after sales.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU
Accepted Payment Currency:USD,EUR,JPY,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

---
