China Manufacturer High Quality Double Regulating/Static Balancing Valve

Product Description

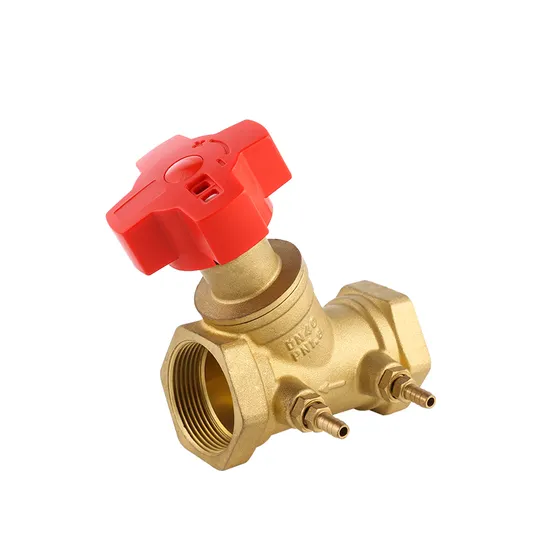

Brass balance valve with CE mark

Technical standard Working pressure:20 bar Working medium: Suitable for hot and cold water,compressed air,oils, non-corrosive fluids and hydrocarbons in general. Working temperature: 0° C≤ T≤ 120° C (from 32°F to 248° F) End Connection: BSP, NPT Thread standard: ISO228(equivalent to DIN 259 and BS2779) Size: 1/2"-2" Packing: Inner boxes in cartons, loaded in pallets

DN(mm)	Spec(Inch)	L(mm)	H(mm)	d(mm)	D(mm)
15	1/2"	70	98	13	50
20	3/4''	75	98	14.5	50
25	1"	83	100	17	50
32	1¼"	90	100	19	50
40	1½"	97	105	19	50
50	2"	110	110	23	50

Production material

NO.	Part Name	Material
1	Body	Brass
2	Ball	Brass
3	Stem	Brass
4	Handle wheel	POM
5	Cartriage	Brass
6	Jumper	Brass
7	Spring	STAINLESS STEEL
8	Pole	Brass
9	O-ring	EPDM

Pruduct Introduction This thread brass balance valve makes it easy to balance mechanical and plumbing systems with our new lead-free and dezincification resistant. Our thread brass balance valve is faster and easier to set because it does not require any special calculators or meters. Integral pressure temperature ports provide a direct readout across the orifice; optimum flow is quickly and accurately determined by simply measuring the differential pressure.
Certificate
More display
About us
We are specialized in HAVC system parts and brass valve fields for more than 25 years, Our main products cover brass manifold, radiator valve, motorized valve, ball valve, gate valve,check valve, stop valve, safety valve, air vent valve, brass fitting and so on with more than 40 series and 2000 varieties.

---
