China Supplier Nylon Cable Tie Injection Molding Machine

Product Description

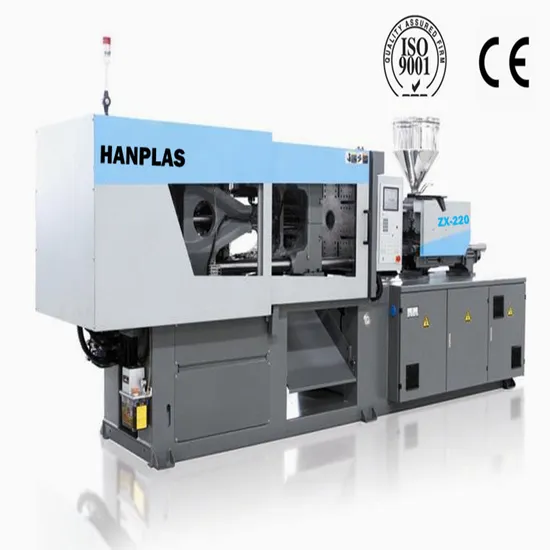

Zhengyue China Supplier Nylon Cable Tie Injection Molding Machine
Features:
User friendly: Easy nozzle alignment after injection carriage improved. Easy care and maintenance.
Precision: high optimistic mechanical structure with high-tech controller, greatly increase machine service life and precise.
Speedy: High injection speed reducing cycle time.
Durable: Thicker platens to add strength, free from deforming molds.
Stable: dual cylinder injection, perform stability and reliability.

ZX-220	Injection Unit Date		A	B	C
	Screw diameter	mm	45	50	55
	Screw L/D ratio	/	22	20	18
	Theoretical shot volume	cm3	398	491	594
	Shot weight(PS)	g	366	452	546
	Injection rate	g/s	160	198	240
	Max.screw speed	rpm	210
	Clamping Unit
	Clamping force	KN	2200
	Toggle stroke	mm	520
	Space bettween tie bars	mm	545x545
	Min.mold thickness	mm	180
	Max.mold thickness	mm	560
	Hydraulic ejection stroke	mm	160
	Hydraulic ejection force	KN	49
	Others
	Hydraulic system pressure	Mpa	17.5
	Pump motor	kw	23
	Heating capacity	kw	11.5
	Oil tank capacity	L	300
	Machine dimensions	m	5.6x1.4x2.0
	Machine weight	Ton	6.3

Dimension:
Zhengyue Group is a specialized company engaging in the Research, Development ,Production and Sales of Mechanical and electrical integrated products.
There are mainly five product series Including: CNC Miller, Machining Center, Plastic Injection Molding Machine, CNC wire cutting Machine, CNC Electrical Impulse.
In recent years Zhenyue has got honours in succession, e.g."One of Top Hundred Key Enterprises in Ningbo", "AAA Credit Company in Ningbo", ETC.
Zhengyue products won HI-tech Prize and New Product Prize of the Municipal ,Provincial and State Level. The total construction scale of Zhengyue reaches to 66,000 square meters. With a first-class managing center ,it now has over 500 workers and staffs, among which 30% are R&D personnel. This R&D team allows Zhengyue to develop new products with the worlds most advanced technology.
After-Sale Service :
1. Technical files service provided.
2. On-site training service provided.
3. Free training course at our plant.
4. Lifetime maintenance free of charge.
5. Technical support online service provided.
6. Spare parts replacement and repair service provided.
7. We will provide the consumable parts at an agency price when you need replacement.
FAQ :
How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading
