High Performance Self-Calibration Magnetic Digital Compass

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
ECB600
Warranty
1 Year
Accuracy
0.3degree, RMS
Transport Package
Carton
Specification
33*27*10mm
Trademark
SkyMEMS
Origin
China
HS Code
9014100000
Production Capacity
2000/Month

Product Description

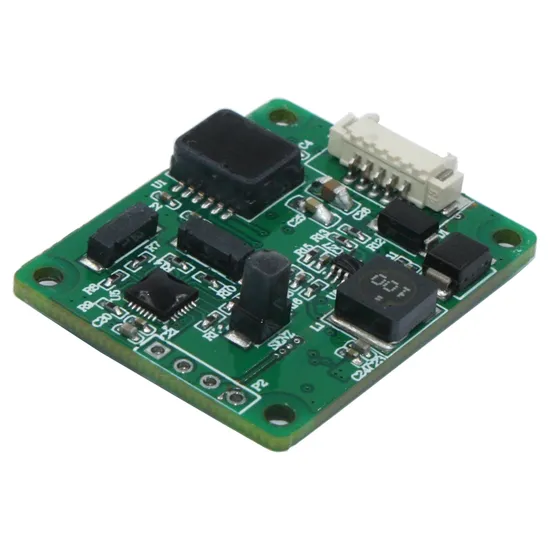

ECB600 High Performance Self-Calibration Magnetic Digital Compass
Main Features
- Support Easy and Fast User Calibration, Easy to Use
- Heading Accuracy: 0.3° RMS (25°C, Tilt Angle<30°)
- Pitch and Roll Accuracy: ±0.1° (25°C, Full Range)
- Hard/Soft Magnetic Compensation, Tilt Compensation
- Wide Power Supply: 5~24V±0.3VDC
- Interface: RS232 (default), or RS485 / LV-TTL (optional)
- Wide Working Temperature: -40~+85°C
- Small Size: 33*27*10mm
Brief Introduction
ECB600 digital compass module is a high accuracy 3D digital compass module that provides accurate heading and tilt readings, SkyMEMS's advanced hard and soft iron correction algorithms allow for compensation of magnetic distortions inherent in the user's system, resulting in reliable and consistent readings, and the user calibration is easy and fast, ECB600 can do user calibration by receiving commands sent by user, and user calibration can be done without connecting PC, it is easy and flexible.
ECB600 integrates 3-axis magneto-inductive sensors, 3-axis MEMS accelerometer and central processing unit to calculate the heading data in real time and compensate the heading when it has inclination angle. ECB600 has multiple interfaces, and it enjoys small size, high accuracy, low power consumption and low cost, which is very convenient to be integrated into different systems, it has been widely used in laser rangefinders, antenna positioning, buoy, unmanned systems and marine navigation fields, etc.
Technical Specifications
Parameters Value Comments
Heading
Range 0~360°
Accuracy 0.3° RMS 25°C, tilt angle<30°
0.5° RMS 25°C, tilt angle<60°
1.0° RMS 25°C, tilt angle<85°
Resolution <0.1°
Tilt Performance Specs
Range roll: ±180º , pitch: ±85º
Accuracy 0.1° RMS 25°C
Resolution < 0.01°
Electronical Performance
Input Voltage 5~24V±0.3VDC
Current 12mA@12VDC
Power Consumption <0.2W
Startup Time ≤500ms
Environment Condition
Working Temperature -40~+85°C
Communication Protocol
Communication Mode Interface: RS232 (default), or RS485 / LV-TTL settable
Baud Rate 2400~115200 settable
Maximum Output Speed 100Hz ODM supported
Physical Parameter
Dimensions (L x W x H) 33*27*10mm
Weight around 8grams

Typical Applications
-laser rangefinders
-antenna positioning
-buoy
-unmanned systems
-marine navigation fields
