Color Steel Roll Forming Machine Roofing Sheet Roll Forming Machinery for Roof and Wall Building Materials

Product Description

Product Description

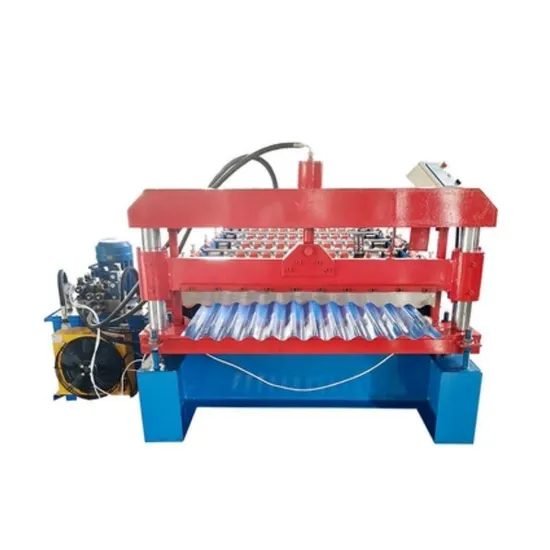

Corrugated shape tile roll forming machine
Metal plate roofing sheet Corrugated iron sheet roll forming machine for different models based on different designs or customer's samples . It is a machine produce building material of metal roof, the products are widely used as the roof and wall of factory,warehouse, garage, gymnasium, exhibition center.It has many advantages, such as easy installation, short building period, beauty, light weight but high strength. Product Parameters

Formed Material	PPGI,GI,AI		Thickness:0.3-0.8mm
Decoiler	Hydraulic automatic decoiler		Manual decoiler(will give you as free)
Main body	Roller station		18 rows(As your requirement)
	Diameter of shaft		80mm solid shaft
	Material of rollers		45# steel, hard chrome plated on the surface
	Machine body frame		350 H steel
	Drive		Chain transmission
	Dimension(L*W*H)		9500*1600*1600(customize)
	Weight		6.5T
Cutter	Automatic		cr12mov material, no scratches, no deformation
Power	Motor Power		5.5KW
	Hydraulic system power		5.5KW
Voltage	380V 50Hz 3Phase		As your requirement
Control system	Electric Box		Customized(famous brand)
	Language		English(Support multiple languages)
	PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
Forming Speed	15-20m/min		The speed depends on the shape of the tile and the thickness of the material.

Packaging & Shipping

Our Advantages
Company Profile
Zhongke is a manufacturer of tile press machines, we have many years of R & D, design and production of rich industry experience. Nowadays, our company has formed a complete modern management model with great product development and innovation ability. Our products are favored by global customers because of the lightweight structure, novel design and high degree of innovation.
Our main products include: Roll Forming machine, Glazed Tile Forming machine, Roof panel, Wall panel molding machine, C Z Steel machine, Stand Seaming Roof Tile forming machine, Floor Deck Roll Forming machine, Rolling Shutter Door machine, Double Color Steel Tile Forming machine, Shearing Plate and Bending machine, Composite Plate Production line, other auxiliary equipment, Shaped Tile Pressing machine and other series products, facing all over the world. Our company's products beautiful and magnificent in appearance, structure is light and reasonable, tile category variety. Therefore, our products are widely praised by the color steel industries and customer friends of the world.
sample display
Qualification certificate

---
