| US$10.76-95.81 | 1 Piece (MOQ) |

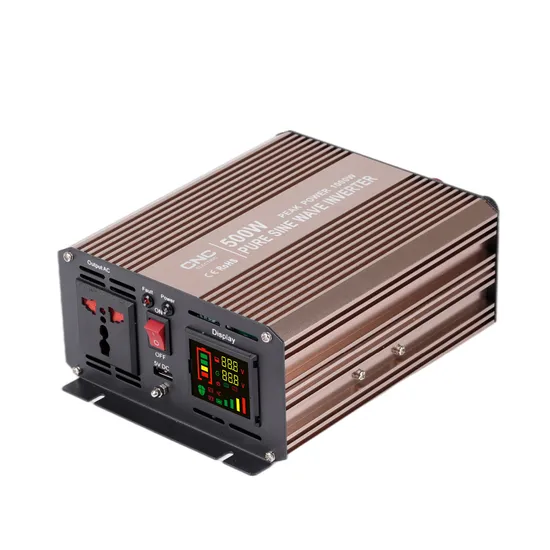

| Model Specification | YCPE300 | YCPE500 | YCPE1000 | YCPE1500 | YCPE2000 | YCPE3000 | YCPE4000 | YCPE5000 | YCPE6000 | YCPE8000 |
| Rated Power | 300W | 500W | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 8000W |
| Surge Power | 600W | 1000W | 2000W | 3000W | 4000W | 6000W | 8000W | 10000W | 12000W | 16000W |
| Input Voltage | 12/24/48VDC | 24/48VDC | ||||||||
| Output Voltage | 110/220VAC±5% | |||||||||
| USB Port | 5V 2A | |||||||||
| Frequency | 50Hz±3 or 60Hz±3 | |||||||||
| Output Waveform | Pure Sine Wave | |||||||||
| Soft Start | YES | |||||||||
| THD/AC Regulation | THD<3%(LinearLoad) | |||||||||
| Output Efficiency | 94%MAX | |||||||||
| Cooling Way | Intelligent Cooling Fan | |||||||||
| Protection | Battery Low Voltage & Over Voltage, Over Load, Over Temperature,Short Circuit | |||||||||
| WorkingTemperature | -10°ºC-+50°ºC | |||||||||
| Dimension(L*W*H)(cm) | 20*11.2*6 | 21.5*15*7.8 | 27.8*17*10.5 | 38.1*17*10.5 | 38.1*17*10.5 | 48*19.9*8.4 | 44*20*15 | 51*20*15 | 61*20*15 | 61*20*15 |
| Meas./Ctn(L*W*H)(cm) | 54.5*49*32.5/18PCS | 76*45*28/10pcs | 53.5*47*40.7/6pcs | 47.5*47*36.5/4PCS | 475*47*36.5/4PCS | 62.5*53*29.5/4pcs | 63.5*30.8*24/1pcs | 63.5*30.8*24/1pcs | 73.5*30.8*24/1pcs | 73.5*30.8*24/1pcs |
| N.W./Unit(kg) | 0.82KG | 1.7KG | 2.74KG | 4KG | 4KG | 6.1KG | 9KG | 10.12KG | 11.62KG | 13.14KG |
| G.W./Ctn | 20KG | 22.5KG | 20.5KG | 21.6KG | 21.6KG | 30.44KG | 10.84KG | 11.72KG | 13.44KG | 14.96KG |
| Packing | Carton | Honeycomb carton | ||||||||
| Warranty | 2 Years | |||||||||
