High-End Tools Non-Conventional Gooda Manufacturer Steel Box CNC Milling Machine

Product Description

Main Function:
CNC system once setting and automatic guides where work-piece loading place, automatic measurement, four- sides process, which can reduce working strength of operator and increase Productivity, maintain high accuracy for dimension, squareness and parallelism.
The best choice of surface milling machine for 20-460mm square workpieces,sales leading, Equipped with Japan Fanuc system, high efficiency.Machine base with rigid, one piece iron construction,Powerful vertical hydraulic clamping with one main cylinder.

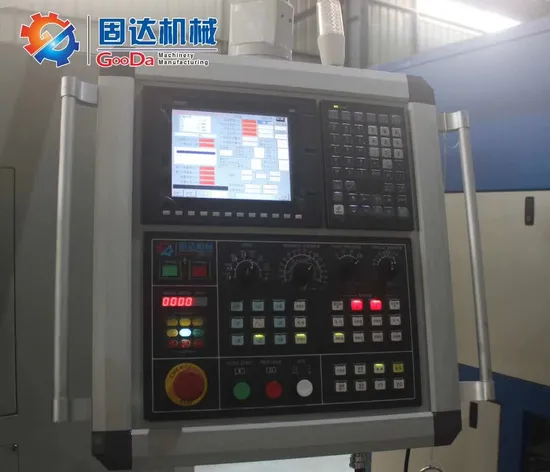

Detailed Pictures:
Specifications:

Items		Unit	Model
			TH-520NC
Cutting Capacity	Control Axis	No.	4
	Max.Milling Size (L*W*H)	mm	520*520*190
	Min.Milling Size (L*W*H)	mm	50*50*20
	One time Cutting Capacity	mm	2*2.0
Travel	X axis	mm	250
	Y axis	mm	250
	Z axis	mm	800
Feed Speed	X/Y/Z Max. rapid feed rate	m/min	10
	Max.Cutting feed rate	m/min	10
	Manual feed speed	mm/min	1-1500
Spindle	Spindle speed	Rpm	50-500
	Spindle taper	-	NT50
	Cutter diameter	mm	200
Motor	Spindle servo motor	Kw	2* 9
	X/Y axis feed servo motor	Kw	2.5
	Z axis feed servo motor	Kw	2.5
	Rotary table Servo motor	Kw	1.8
	Clamper hydraulic motor	Kw	1.5
Work table	Worktable dimension	mm	400*400
	Max.Loading weight	Kg	500
Hydraulic Clamper	Cylinder No.	Pcs	1
	Oil tank volume	L	60
Lubrication system	Lubricating oil tank	L	2
	Lubricating power	W	18
Floor space require (L*W*H)		mm	3.3*3.5*2.3
Machine weight		ton	8.5
CNC system			FANUC or Mitsubishi or Siemens

---
