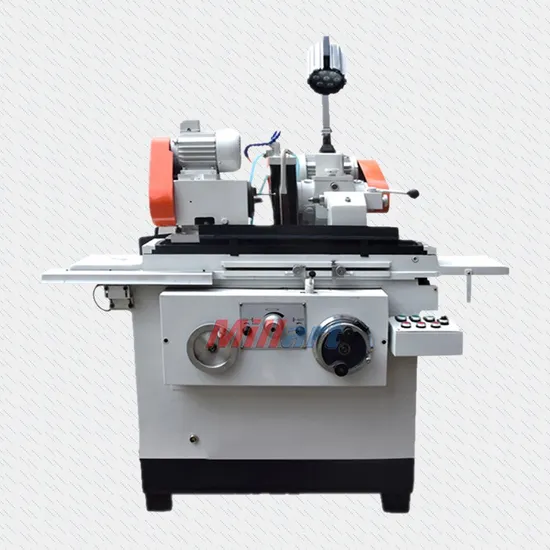

M1308 M1408 Universal Cylindrical Grinding Machine

Product Description

Product description:
Technical parameter :
Feature :
1, mainly used for grinding small shaft, circle, needle valve, plunger set of cylinder and cone surface
2, tooling way available top, three jaw chuck, and special fixture of spring clip;
3, apply to instrumentation, automotive electrical and mechanical, bearings, textile, Marine, sewing
machines, machinery and other industries processing small parts,
4, vertical moving workbench hydraulic and manual, grinding wheel rack and head are rotating,
hydraulic system USES the good performance of the gear,
5, suitable for tools, machine shop and workshop for medium and small batch production,
6, the machine according to the top is divided into 300 mm.

Model	M1308	M1408
grinding dia	dia2-80mm	dia2-80mm/10-60mm
center grinding length	300mm	300/65mm
center height	115mm	115mm
max workpiece weight	10kg	10kg
worktable speed	0.1-4m/min	0.1-4m/min
wheel peripheral velocity	35m/sec	35m/sec
max travel of table	320mm	320mm
swivel range of table	-5-+9degree	-3-+7degree
external wheel size	180-250mm*25*75mm	180-250mm*25*75mm
Wheel spindle speed	2000r/min	1600r/min
tail center	NO.3	NO.3
machine size	1360*1240*1000	1360*1240*1000
weight	950kg	1500kg
motor power	1.5kw	1.5.kw
Motor total power	3.16kw	3.16kw
Roundness	0.002um(OD)	0.002/0.005um(O.D/I.D )
Surface roughness	RA0.25(OD)	RA0.25/0.63(OD;ID)
Uniformnity of dia.in longitudinal section	5UM(OD)	5/8UM(OD;ID)

Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
