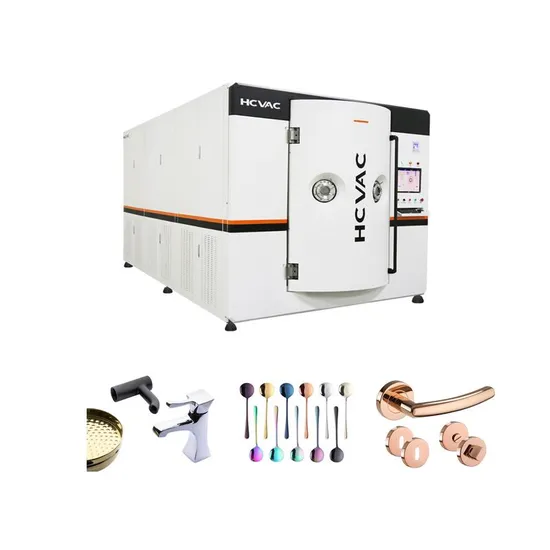

Hcvac New Watchband PVD Coating Machine /PVD Vacuum Plating Equipment for Watchband

Product Description

Product Description

Hcvac New Watchband PVD Coating Machine /PVD Vacuum Plating Equipment for Watchband The machine can get all kinds of vacuum color coating on watch,Jewelry,Luxury Logos parts,Bag parts. The Products material can be Stainless steel,brass and other alloy Metal. The machine use Physical deposition technology(PVD). Titanium material reaction with 4 types of gas to get different color coating(TiN,TiAlN,TiC,TiO and other Titanium coating), the machine also adopt Middle frequency Magnetron sputtering,Radio frequency Magnetron sputtering System. It can get IPG,IPR,IPS,IPB,real gold,real rosegold,Platinum coating on jewelry surface. Most of customers in Jewelry field belong to World jewelry watch supply Chain. The machine also can coat other hardward,glass and ceramic products.
Films classified with colors:
Real gold an real rosegold coating
Imitation gold series: TiN, ZrN, TiN+Au, ZrN+Au
Rose Gold Series: TiCN, TiAlN, TiCN+Au--Cu, TiAlN+Au, Cu
Silver white series: CrN, CrSiN, Zr (micro N)
Grey series: Ti, stainless steel (S.S), (S.S) N
Coffee color series: TiCN, TiAlCN, ZrC
Blue series: TiO, CrO, TiALN
Black Series: TiC, TiC+iC, TiCN, TiAlN, TiAlCN, Ti (C, O) and DLC
Technical data:

Mode	HCMS+CA-900	HCMS+CA-1100	HCMS+CA-1212
Dimension	D900*H1000mm	D1100*H1000mm	D1250*H1200mm
Coating mode and main confirguration	Six arc targets + one set of column targets+ one set of plane rectangle magnetron sputtering targets	Six arc targets + a pair of twin (MF)magnetron sputtering targets	Eight arc targets + two sets of plane rectangle magnetron sputtering targets+ a pair of twin (MF)magnetron sputtering targets
Power source	Electric arc power, DC magnetron power, MF magnetron power, filament power, pulse power, linear ionized source.
Process gas control	Quality flowmeter + electromagnetism ceramic valve
Vacuum chamber structure	Vertical single(side) door, pump system postposition, double water-cooling
Vacuum system	Molecule pump +Roots pump +Mechanical pump(5.0*10-5Pa) Diffusion pump +Roots pump +Mechanical pump(5.0*10-4Pa)
Workpiece baking temperature	Normal temperature to 350 centi-degree PID control, radiation heating.
Workpiece motion mode	Public rotation Frequency control: 0-20 rotation per minute
Measure mode	Number display composite vacuum gauge: from atmosphere to 1.0*10-5Pa
Control mode	Manual/Automatic/PC/PLC + HMI/PC four choice of control mode
Remark	We can design the dimension of the equipment according to customer's special technique requirement.

Those are the pvd coating machine for watch,Jewelry and related parts:
Those are the finished samples which coated by PVD machine:
Samples coated by our machine: Other pvd machine type:Big size side open door machine:(for sheet,furniture parts)
For glass and ceramic:
Company Information:
Factory workshop:
Certificate:
Delivery:
Clients:
Why Choose HCVAC system? Over 3000 plants installed worldwide Quick cycle times High production capability with low energy consumption More up time due to ease of loading/unloading and low maintenance High productivity with only a single operator Steel process chambers, built to last Eco-friendly Space saving design PVD option available on all plants 1 year component warranty and 25 years minimum guaranteed working life Complete global network of consulting, engineering and renowned after sales service
We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the full set special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.
ISO 9001 standard to ensure the quality can meet the customer's requirements.
Contact us:
For more information,pls contact with : Sophia

---
