Basic Info.
Application
Liquid, Powder
Main Material
Stainless Steel
Product Name

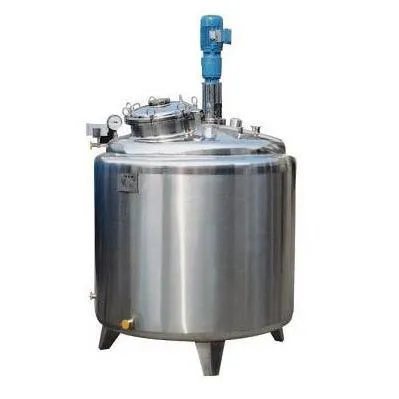

Stainless Steel Mixing Tank
Transport Package
Plywood Case
Production Capacity
500sets/Month
Product Description
Product Name
Vertical mixer, Blending tank, Mixing vessel
Applicable range:
1. Used as liquid storage tank, liquid composing tank, temporary storage tank and liquid blending tank etc.
2. Ideal in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.
Structure characteristics:
1. Adopt structure of internal tank and external package, with heat preservation materials inside.
2. Materials are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.
Configuration of tank:
1. Quick open manhole.
2. Various types of CIP cleaners.
3. Fly and insect resistant sanitary breathing cover.
4. Adjustable triangular bracket.
5. Dismountable materials input pipe assembly.
6. Thermometer (According to customer requirements ).
7. Ladder (According to customer requirements).
8. Side blender.
9. Liquid level meter and lever controller (According to customer requirements).
10. Eddy-proof board.
Remarks
It can be made according to special requirements of customers.
We can design the products according to your special request.
OEM is welcome too.
| Capacity | Working Pressure(Mpa) | Working Temp. ( º C) | Mixing speed (R/M) | H (mm) | H1 (mm) | D (mm) | D1 (mm) | h ( mm) |
| 100 | 0.25 | 100 | 0 - 720 | 1750 | 450 | Φ 750 | Φ 550 | 300 |
| 200 | 0.25 | 100 | 0 - 720 | 1950 | 600 | Φ 850 | Φ 650 | 300 |
| 600 | 0.25 | 100 | 0 - 720 | 2500 | 1000 | Φ 1100 | Φ 900 | 350 |
| 1000 | 0.25 | 100 | 0 - 720 | 2850 | 1200 | Φ 1300 | Φ 1100 | 350 |
| 2000 | 0.25 | 100 | 0 - 720 | 3350 | 1500 | Φ 1500 | Φ 1300 | 350 |
| 3000 | 0.25 | 100 | 0 - 720 | 3700 | 1700 | Φ 1700 | Φ 1500 | 350 |
| 5000 | 0.25 | 100 | 0 - 720 | 4250 | 2000 | Φ 2000 | Φ 1800 | 400 |
| 10000 | 0.25 | 100 | 0 - 720 | 5000 | 2500 | Φ 2500 | Φ 2300 | 400 |
>>
