Product Description
Product Description

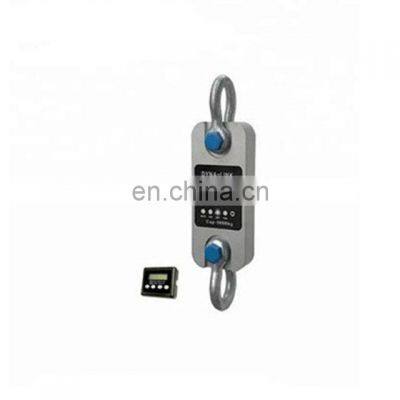

Product Description5000 kg Electronic Industry wireless dynamometer hanging load cell digital crane scaleTEM-W3 wireless dynamometer is an extremely well-built instrument for industry use ,as a standard wireless tool offer universal applications, Whether used as conventional crane weigher or to measure force, TEM-W3 wireless dynamometer is microprocessor controlled for high precision accuracy, calibration is easier with wireless handheld indicator.5000 kg Electronic Industry wireless dynamometer hanging load cell digital crane scaleSpecificationsBasic specification of dynamometerBody Display25mm (1’’) 5digits LCD with backlightUltimate Load400% F.S.Indicator Display25mm (1’’) 5digits LCD with backlightBattery Life≥50 hoursPower on zero range20% F.S.Ultimate Load400% F.S.Manual Zero Range4% F.S.Body Battery“LR6(AA)”size alkaline batteries. 1.5Vⅹ3Tare Range20% F.S.Indicator Battery “LR6(AA)”size alkaline batteries. 1.5Vⅹ4Stable Time≤5 secondsOperating Temp.- 20℃ ~ + 50℃Overload Indication100% F.S. + 9eOperating Humidity ≤85% RH under 20℃Max. Safety Load125% F.S.Wireless DistanceMin. 80m(default) [200m(optional)] Features of Wireless DynamometerWeights of of Wireless DynamometerBody protection: Aluminum and alloy steel capacities are powder coated.Accuracy: 0.05% for 1-50t, 0.1% for above 50t capacity.Units: Units are clearly display on the screen, available in the following measurement reading: kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN)Shackles: High tension industrial standard G2130 anchor shackle bows, galvanized finish.Gravity regulation: The acceleration of gravity can be regulated through indicator according to different places value.Functions: wireless indicator with many functions: Zero, tar, Low battery warnings, peak hold, overload warning. User calibration(with password).Set-Point: Two user programmable Set-Point can b used for safety and warning applications or for limit weighing.Package: Packed with carry case, easy to bring.Indicator key: 4 local mechanical keys: "ON/OFF","ZERO","PEAK" and "Unit Change".Detailed ImagesPictures of dynamometerCompany ProfileDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.Packing & DeliveryPacking &Delivery of dynamometerContact InformationDALIAN TAIJIA TECHNOLOGY CO.,LTDNO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033E-mail:ndt at TEL:86-411-39685079Whatsapp:+8613164541149 Skype:tmeasurement04web:
>>
