DIY Tools Portable Edge Banding Machine

Product Description

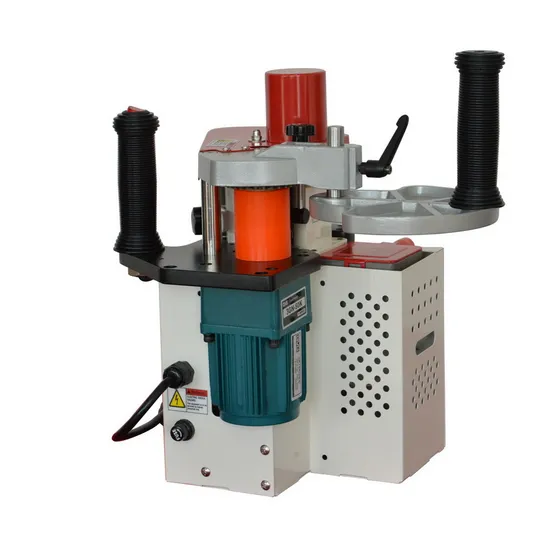

JBT80 Portable Edge Banding Machine
Technical Specification:

Type	JBT80
Min edge diameter	40 mm
Feeding speed	5 m/min
Banding thickness	0.3-3.0 mm
Banding width	10-45 mm
Operating temperature	120-170ºC
Motor power	15 w
Total power	765 w
Glue pot volume	270 ml
Weight	9.5 kgs
Machine size	380*330*380 mm
Independent packing size	380*300*420 mm
Whole package size	465*430*515 mm
0-45°Tilting	no
Double Surface Gluing	no

Feature:
1. The perfect solution for edge banding of all sizes !
2. The edge bander can be used for large sized wooden boards and half-finished wooden products.
3. The board can be fixed in place while the hand-held edge bander proceeds.
4. It can also be used for small sized wooden boards while the machine is fixed onto a conveyor belt or table with stand.
5. The process of edge banding is the same for normal sized loads.
Product Details:
Certificate:
Our company:
Qingdao Zhongding Machinery Co., Ltd is professional at manufacturing woodworking machines. Our main products includes: sliding table saw(panel saw), edge banding machine, hydraulic cold press, hot press, carpenter drilling machine ( boring machine), etc. We are factory, we provide the machine with reasonable price and high quality, and welcome to visit our factory and our products.

---
