SIMCOM SIM800L

Product Description

Product Description

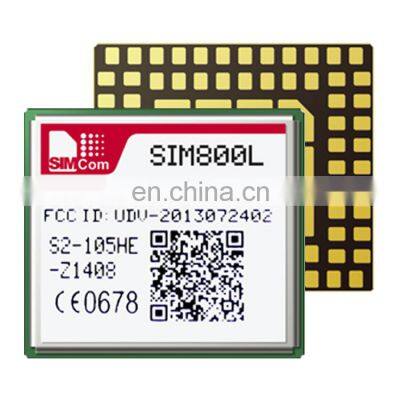

DescriptionSIMCOM SIM800L GSM GPRS ModuleSIM800L is a complete Quad-band GSM/GPRS solution in a LGA type which can be embedded in the customer applications. SIM800L support Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power consumption. With tiny size of 15.8*17.8*2.4 mm, it can fit into slim and compact demands of customer design.General features•Quad-band 850/900/1800/1900MHz•GPRS multi-slot class 12/10•GPRS mobile station class B•Compliant to GSM phase 2/2+– Class 4 (2 W @ 850/900 MHz)– Class 1 (1 W @ 1800/1900MHz)•FM: 76~109MHz worldwide bands with 50KHz tuning step•Dimensions: 15.8*17.8*2.4 mm•Weight: 1.35g•Control via AT commands (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)•Supply voltage range 3.4 ~ 4.4V•Low power consumption•Operation temperature:-40°C~85°CSpecifications for GPRS Data•GPRS class 12: max. 85.6 kbps (downlink/uplink)•PBCCH support•Coding schemes CS 1, 2, 3, 4•PPP-stack•CSD up to 14.4 kbps•USSD•Non transparent modeSpecifications for SMS via GSM/GPRS•Point to point MO and MT•SMS cell broadcast•Text and PDU modeSoftware features•0710 MUX protocol•Embedded TCP/UDP protocol•FTP/HTTP•MMS•E-MAIL•DTMF•Jamming DetectionSpecifications for voice•Tricodec – Half rate (HR) – Full rate (FR) – Enhanced Full rate (EFR)•AMR – Half rate (HR) – Full rate (FR)•Hands-free operation (Echo suppression)Interfaces88 LGA pads including:•Analog audio interface•PCM interface•RTC backup•Serial interface•USB interface•Interface to external SIM 3V/1.8V•Keypad interface•GPIO•ADC•GSM Antenna pad•FM Antenna padCompatibility•AT cellular commandCertifications(Plan): •CE •GCF •FCC •ROHS •REACHWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC

---
