Product Description
Product Description

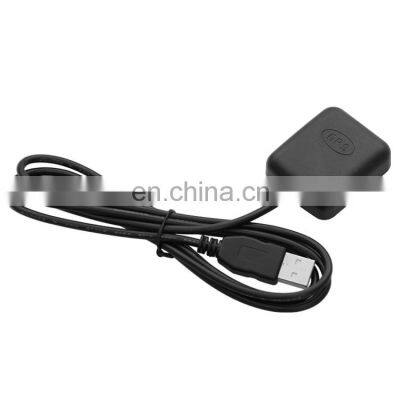

DescriptionThis is one of our standard GPS Receiver.Please kindly send us inquiry directly for your customized requirements.Thank you. Main chip UBX-M8030-KT Track sensitivity -167dbm Protocol Protocol compliant NMEA-0183, UBX, RTCM2.3 Built in high LNA and six-axis acceleration sensor YES Support satellite systems GPS, Glonass, Galileo, Beidou Power consumption 140mA~150mA Operating temperature -40 to 85℃ Operating voltage 3.0V to 5.0V Module type UART/TTL Size 45x38x14.3mm Certification RoHS compliant(Lead-free)General DescriptionThe HR-45DR-U8P01-P07 module is consist of the Swiss Ubx M8 series GNSS chip, and six axis acceleration sensor. It is a multiple function communication module which has integrated the advanced onli-ne adaptive integrated navigation algorithm and GNSS location engine, it can provide real-time,high-precision vehicle location, speed measurement and direction measurement information in any environment (such as indoor, tunnel, underground garage, etc). When the signal accuracy is reduced and even satellite signals are lo-st in GNSS system, without using the odometer information, HR-45DR-U8P01-P07 Can use only inertial na-vigation technology to locate, measure the vehicle carrier accurately for a long time.The HR-45DR-U8P01-P07 is a concurrent receiver module with built-in multiple positioning systems tha-t support simultaneous reception of GPS, GLONASS, Galileo, Beidou, and QZSS L1 bands. It has 33 track-ing channels, 72 capture channels and 210 PRN channels, enable it to capture and track any multiple satelli-te signals. Compared with single GPS system, the multiple positioning system (GPS&GLONASS& Galileo, Beidou &QZSS) of HR-45DR-U8P01-P07 makes a great increase in the number of visible and available satellites, at the same time, the first positioning time is greatly reduced, even in complex urban enviro-nment, it can achieve higher positioning precision and accuracy.ApplicationThe module is equipped with a 2*2-pin molex Connector that connects to your application platform. The HR-45DR-U8P01-P07 module It consists of a UBX-M8030KT single chip GNSS IC which includes the RF part and Baseband part, a patch antenna, a LNA, a SAW filter, a TCXO, a crystal oscillator, a six-axis acceleration sensor can be used to define various gravity algorithms, Also comes with a 0.22F crystal capacitor ,can backup satellite ephemeris about 2 hour. Pin No.Pin nameI/ODescription1VCCIModule Power Supply2USB_DMI/OUSB Data （D-）3USB_DPI/OUSB Data （D+）4GNDGGroundWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC
>>
