LED Panel Light for Ceiling Lighting Ce RoHS Certification

Product Description

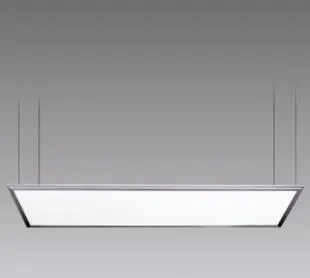

LED Panel Light for Ceiling Lighting CE RoHS Certification

Product features:
-Edge-lit LED Flat panels for office and commercial lighting
-Ultra slim design (9mm) for perfect light output
-Can be surface mounted or suspended
-Life to 70% lumen maintenance - 50,000 hours
-3-year warranty
-With CE, RoHS compliant
Product Specification:
Item: MB-PF -xx-12060/65W
Wattage: 65W
Lumens: 4300lm±10%
Dimension: 1195x595x12mm (LxWxH)
Light Source: SMD2835 / SMD5630 /SMD4014 High Brightness
Lifespan: 50,000hs
Material: Aluminum alloy anodized + PMMA light guiding plate
Power Factor: >0.90
Beam Angle: 150 degree
Color Temperature: WW (3000-3500k), CW (6000-6500k)
Input Voltage: AC 90-265V
Forward Voltage (V): 20-25V
Forward Current (mA): 1200mA
Working Temperature: -20~45ºC
Storage Temperature: -20~65ºC
IP Grade: IP44
Warranty: 3 years
Packing Size: 1260*150*400mm (LxWxH), 2PCS/box, 11.62KGs

Item:	MB-PF -xx-12060/65W
Wattage:	65W
Lumens:	4300lm±10%
Dimension:	1195x595x12mm (LxWxH)
Light Source:	SMD2835 / SMD5630 /SMD4014 High Brightness
Power Factor:	>0.90

Application:
-Hotel, office, meeting room, exhibition hall
-Residential/Institution buildings
-School, University, Hospitals, etc.
Cautions:
-Power off before replacement
-Do not touch the lamp when lighting
-Indoor use
-Do not use it in air-proof area
-Please consult electricians for in/uninstalling support
Remark:
1. Light source: LM 80 test passed SMD2835 LED, >80lm/W.
2. CRI: ≥80
3. 3mm Light Guide Plate for high uniformity and brightness optical performance
4. Pure Aluminum6063 with high thermal conductivity for efficient heat dissipation.
5. 10mm slim body
6. TUV listed Led driver
7. Dimming method: Triac, DALI, 0-10V. (Optional)

Model number	Electrical parameters		Optical parameters				SMD 2835 LED quantity (pcs)	Physical parameters
	Input voltage	LED power (W)	Luminous flux (lm) (±5%)	Beam angle	CCT (K)	CRI		Size (mm)	Weight (kg)
PL0303- 20W	AC180- 240V AC100- 277V	20W	1630LM	110°	2800-3200K 3850-4250K 5500-6000K	80+	144	295(L)x295 (W)x10(T)	1.03
PL0306- 20W		20W	1630LM	110°	2800-3200K 3850-4250K 5500-6000K	80+	144	295(L)x595 (W)x10(T)	1.7
PL0312- 40W		40W	3160LM	110°	2800-3200K 3850-4250K 5500-6000K	80+	264	295(L)x1195(W)x10(T)	3.2
PL0606- 40W		40W	3240LM	110°	2800-3200K 3850-4250K 5500-6000K	80+	216	595(L)x595 (W)x10(T)	3.0
PL0606- 50W		50W	4076LM	110°	2800-3200K 3850-4250K 5500-6000K	80+	336	595(L)x595(W)x10(T)	3.0
PL6262- 40W		40W	3220LM	110°	2800-3200K 3850-4250K 5500-6000K	80+	216	620(L)x620 (W)x10(T)	4.5
PL6262- 50W		50W	4035LM	110°	2800-3200K 3850-4250K 5500-6000K	80+	336	620(L)x620 (W)x10(T)	4.5
PL0612- 60W		60W	4830LM	110°	2800-3200K 3850-4250K 5500-6000K	80+	432	595(L)x1195 (W)x10(T)	8.0

Package

Model No.	PCS/Carton (pcs)	Inner box size (cm)	Carton Size (cm)	Net weight (Kg)	Gross weight (Kg)
PL0303-20W	10	32×3.3×36.5	35×33.5×38.5	10.28	13.04
PL0306-20W	8	62×3.35×36.5	63.5×38.5×38.5	13.62	18.78
PL0312-40W	5	122×3.5×37	123.5×19×40	16.02	21.51
PL0606-40W/50W	5	62×3.5×66.5	63.5×18×68.5	15.85	19.53
PL6262-40W/50W	5	64.5×3.5×69	66×18×70.5	18.02	21.7
PL0612-60W	2	122×3.5×65.5	123.5×13.5×67.5	16.04	21.5

Application:
1. Commercial and exhibition locations
2. Hotel, shopping mall
3. Conference/meeting room
4. hospital, office, residence,etc.
5. Schools, Colleges & Universities
FAQ: Q1: Are you a manufacturer? Yes, we are. You can check more in our website: maxblue.en.made-in-china.com Q2: Do you have the MOQ request? For our developed products, there is no MOQ for the standard products. Q3: How long can I get my order? The lead time 3-7 working days for sample, and 7-15 working days for bulk order. Sometimes it is shorter or longer according to stock and quantity. And shipping time is around 5-30 working days depends on shipping methods you choose. Q4: What is warranty time for your products? If any broken, what I will do? 3 years warranty for most of our products. During warranty time, we will arrange the new replacement to you for free of charge. Q5: Can I get OEM/ODM customized products for special application? Of course, we provide OEM and ODM service, design and produce per customers' requirement. Such as different length, different voltage and higher lumen efficiency of led strip, different sizes of led panel, tube; special/unusal material for some lights etc. Q6: What kinds of payment methods do you accept? T/T bank transfer, West Union and Paypal, L/C at sight Q7: What kinds of shipping methods you use? Sea: seaport to seaport, cheap, long time, suitable for big volumn orders Air: airport to airport Global express DHL, UPS, FEDEX, EMS, TNT: door to door, mostly used, 3-7 working days delivered. Kinds of Post air mail etc: for small packages below 2kgs, 25-30 working days.
Q8: How to contact us?
