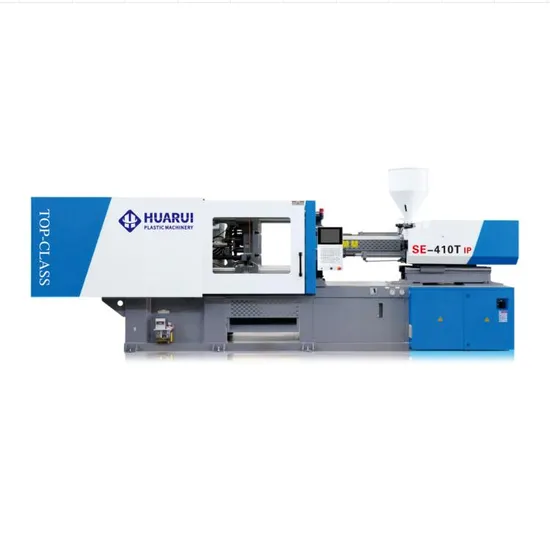

410ton Horizontal Energy Efficient Plastic Injection Molding Machine Special Pet Preform Production Full Automatic Servo Motor

Product Description

Fast Speed Plastic Injection Machinery Automatic Pet Bottle Preform Injection Molding Machine
Product Parameters

SE-410T IV Plastic Injection Molding Machine Information
Item		Unit		A		B		C
Screw diameter		mm		70		75		80
Theoretical shot volume		cm³		1443		1657		1885
Shot weight (PS)		g		1313		1508		1715
Shot weight (PS)		oz		46.3		53.2		60.5
Length/Diameter ratio		L/D		21.4		20		18.8
Injection pressure		Bar		1988		1731		1522
Injection rate		cm³/sec		367		422		480
Max.screw speed		rpm		150
Clamping force		KN		4100
Max.daylight		mm		1120*1070
Open stroke		mm		760
Space Between Tie-bars		mm		770*720
Min mould dimension		mm		280
Mould thickness range		mm		800
Ejector force		KN		120
Ejector stroke		mm		220
No.of ejector pins		unit		13
Max.motor power		KW		55
System pressure		MPa		175
Heater input power		KW		32
Oil filling capacity		L		500
Machine size		M		8.0*2.0*2.6
Net weight		KG		15500

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
Detailed Photos
