Product Description
Product Description

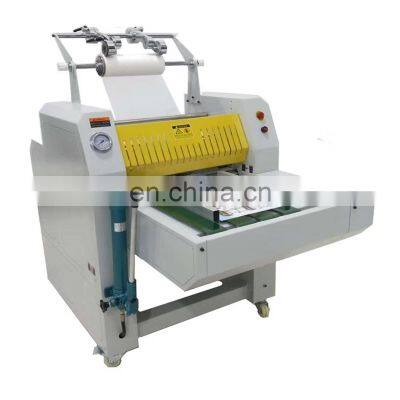

720mm automatic thermal hydraulic paper laminating machine
Application
The laminator machine can be widely used on these products . Such as printed products, picture, photo, calligraphy and painting,New year picture, map, packaging box, placard, documents and so on
Technical data
Model
| YA520
| YA720
| YA920
|
Max laminating width
| 500mm
| 700mm
| 900mm
|
Max thickness
| 10mm
| 10mm
| 10mm
|
Temperature
| 0-130 degree
| 0-130 degree
| 0-130 degree
|
Voltage
| 110V/220V
| 110V/220V
| 110V/220V
|
Frequency
| 50/60HZ
| 50/60HZ
| 50/60HZ
|
Power
| 2000W
| 2000W
| 2000W
|
Speed
| 0-20m/min
| 0-20m/min
| 0-20m/min
|
Weight
| 350Kg
| 450Kg
| 550Kg
|
Packing size (mm)
| 1120*1400*1950
| 1420*1400*1950
| 1820*1400*1950
|
Feature
1.Adopting advanced design and using internal heating and oil conduct heating to make the machine with uniform temperature, stable running and quick speed of laminating .
2.Single and double laminating , automatic winding function, with cutting and cross cut punch
3.Adjust pressure freely by hydraulic , and the pressure is uniform
4. Use the machine , the effect not only with waterproof,antisepsis and UV cut advantages, but also with strong artistic effect like oil painting
Notes
1. If want to laminate higher speed ,the temperature must be reached at 100 to 120 degree
2.There should no gap between backward and forward paper when laminating , otherwise the film will be sticked on the steel roller
3. If the machine working every day .Please inject some lubricant at chain wheel and bearing every half month
4. Keep the steel rod and rubber roller clean. You can wipe it by alcohol
Our company have different laminator machine , if you need more information , please free to contact us .
>>
