Bed-Type Milling Machine for Metal Procession

Product Description

Product Description

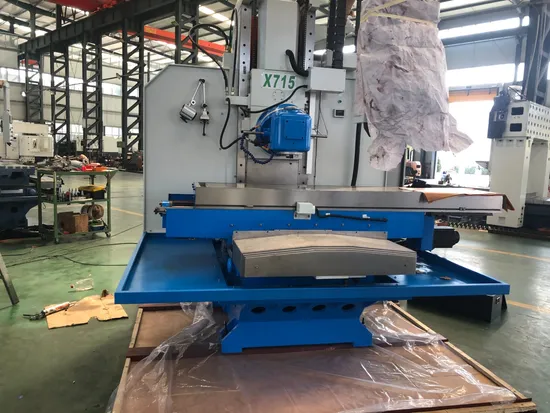

China Multi-purpose bed-type universal milling machine
1.Variable spindle speeds in 2 steps
2.Ball screws on X Y and Z axes
3.Servo motors on X Y and z axes
Detailed Photos
1.Horizontal and vertical milling machine with head swivel +/-360 degrees;
2.Rectangular guideways
3.Large table load, with control panel
4.automatic lubrication system
5.CE electrical componets.
Swivel head when horizontal milling

Product Parameters

Specifications	Unit	X715	X716
Spindle hole taper	mm	7:24 ISO50	7:24 ISO50
Spindle speed range	r/min	Variable 6-300, 30-1500	Variable 6-300, 30-1500
Distance between spindle axis and column guideway	mm	610	8-660
Distance between spindle nose and table surface(V)	mm	0-650	0-700
Distance between spindle axis and table surface(H)	mm	8-660	8-660
Table size	mm	2100*500	2500*600
T slots	mm	4/20/100	5/20/100
Table travel-X	mm	1500	1800
Table travel-Y	mm	650	700
Table feed-X/Y	mm/min	2.5-3000	2.5-3000
Table feed-Z	mm/min	2.5-2500	2.5-2500
Table rapid feed X/Y/Z	mm/min	6000/6000/3000	6000/6000/3000
Main motor power	Kw	11	11
Torque of X/Y/Z axis AC servo motor	Nm	18/23/18	18/23/18
Cooling pump motor power	w	90	90
Overall size	mm	3220*2420*2800	4380*2520*2800
weight	kg	7300	9000

Packaging & Shipping

plywood case with steel pallet
Due to the large volume of the machine, we will use separate packaging in the packaging to reduce the difficulty in the transportation process, so as to ensure the safety of the machine
Certifications

Company Hot Products Link

Company Profile
Shandong XILI Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories. We are manufacturer.All our products passed CE, ISO9001. You can trust our quality and service. Hope we can built long-term business relationship with you.


FAQ
1. What is the MOQ ? Our minimum order quantity is 1 set.2. What is the payment term ? T/T, 30% advance payment before machine production, 70% balance payment before machine delivery. 30% T/T advance payment, and 70% balance payment by Irrevocable LC at sight.3. What is your trade terms ? FOB, CIF, CFR,EX Work.....all are acceptable.4. How long is the guarantee ? 12 month after machine delivery from factory.5. How can i start the order ? You could contact here in made in China, or contact by

---
