CNC Drill Tap Center for High-Precision Drilling and Tapping

Product Description

Main Features

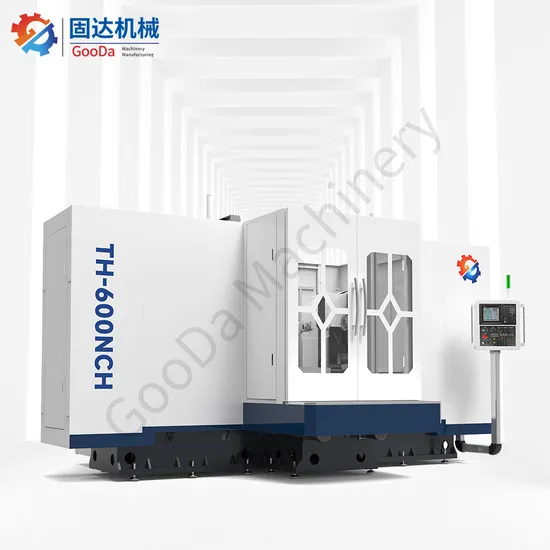

GooDa Twin-Spindle Horizontal Milling & Drilling Machining Center TH-600NCH: The remarkable TH-600NCH, with its advanced moving columns, is your go-to solution for efficient processing of large flat plates, new energy components, flanges, and intricate ring parts. Achieve superior results across a diverse range of workpieces effortlessly.
Unlock the potential of seamless production with the ability to drill both through-holes and blind holes on single-material or composite materials. Experience the power of automation and high precision for large-scale manufacturing, with tailor-made customization options to meet your specific needs.
Main Functions
An exceptional high-precision machine tool designed for seamless integration of cutting, drilling, and tapping;
Process your workpiece in a single operation, eliminating the need for secondary clamping. Enjoy the lightning-fast response of loading, unloading, positioning, and tool changing.
Auxiliary Devices
Innovative retractable workpiece clamping: Automatically retracts for smooth feeding, then extends to securely clamp the workpiece once feeding is complete.
Harness the power of fully automatic robotic arms to revolutionize your production line with efficient, automated processing.
Precision Rotary Table
Employing a precision-engineered Taiwan indexing plate, this machine ensures exact positioning and excels in heavy cutting applications.
Spindle
Experience the unmatched performance of a high-rigidity, high-torque spindle. Designed for precision and strength, it is ideal for cutting with large cutters.
Core Components
Guideway
The Z-axis boasts a high-rigidity hard guideway, while the X and Y-axis utilize roller linear guideways. Perfectly suited for heavy-duty cutting tasks, the machine can perform milling, drilling, tapping, and more, all in one setup.
Casting
Engineered with an HT300 cast machine bed for unparalleled stability and resistance to deformation. The robust large-span base effectively disperses gravity and processing forces, ensuring a sturdy structure with exceptional bed rigidity and processing stability.
System
Equipped with the original, powerful Mitsubishi system, renowned for its superb data processing capabilities. The high-power Mitsubishi main motor delivers outstanding stability, rapid response, and precision.
Dual Tool Magazine
Featuring a dual tool magazine with a high-speed ATC system, this machine effortlessly handles multiple processes such as milling, drilling, and tapping of large and medium-batch parts in a single setup, significantly boosting production efficiency.
Leverage the expertise of our seasoned professionals, eager to assist you in selecting the machine that perfectly matches your processing requirements. Get Expert Assistance Now! Product Parameters

Model	TH-600NCH
Processing capacity	Machining length	600(Turntable)	mm
	Machining width	600	mm
	Machining height	550	mm
Worktable	Worktable size	600x600	mm
	Max. load	2000	kg
Spindle (Belt type)	Spindle	Φ190	/
	Spindle motor	2x18.5	kW
	Tool spindle taper	BT50	/
	Spindle speed	50-1500	rpm
	Drilling diameter (steel)	10-20	mm
	Tapping (steel)	M12-M24	/
	Max.cutting chip	2x1.5	mm
	Cutter diameter	150	mm
	The longest cutter	280	mm
Motor power	Motor power X/Y1/Y2/Z1/Z2/B	3/3/3/3/3/2	kW
	Fast moving speed	8000	mm/min
Tool magazine	Disc type tool magazine	24	T
Space & weight	Machine weight	16	T
	Machine space	5563x4325x3207	mm

Company Profile
Factory Display

Certifications

FAQ
Q1. What is your minimum order quantity and warranty?
A1: MOQ is one set, and the warranty is 12 months.
Q2. What CNC system do you use?
A2: FANUC, SIEMENS, MISTSUBISHI, etc. It depends on your choice.
Q3. When is the delivery time?
A3: For conventional machines, we will deliver them within 30-45 working days after receiving your deposit; For special machines, the delivery time may be longer, and we will provide you with an updated timeline accordingly.
Q4. What is the packaging for the machines?
A4: Packaging: PE bag cover (inside), plywood box, and steel beam frame. Other packing methods are also available.
Q5. How can I select the most suitable machine?
A5: Please let us know your machining requirements or the machine size, and we can recommend the best model for you.
Alternatively, you can choose the exact model yourself. You can also provide us with the product drawings, and we will help you select the most appropriate machine.
Q6. What are your trade terms?
A6: FOB, CFR, CIF, or other terms are all acceptable.
Q7. What are your payment terms?
A7: We accept T/T with a 30% deposit when placing the order and the remaining 70% balance before shipment.
We also accept an irrevocable letter of credit (LC) at sight.
Production will begin once we receive the advance payment. When the machine is ready, we will send you pictures. After receiving the balance payment, we will proceed with the shipment.
Q8: Are you a manufacturer or a trading company?
A8: We are a combined manufacturing and trading company, specializing in the innovative development and production of machine tools, with extensive experience in global exports. We warmly welcome you to visit our factory.
Q9: Can you provide OEM services?
A9: Absolutely. We are happy to create a customized plan based on your requirements and offer the best service to meet your needs.
Q10: How can we receive training for the machines?
A10: You can send your team to our factory for free training, or we can arrange for one of our engineers to travel to your location for on-site training.

---
