Energy-Saving Mini 3 Pole Vacuum LC1d Magnetic Industrial Electrical AC Contactor

Product Description

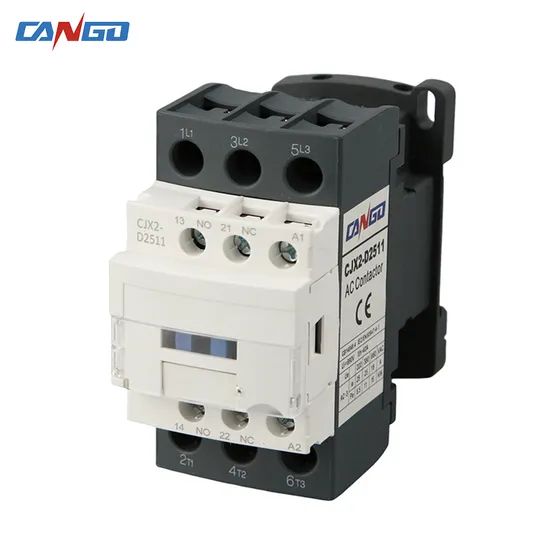

PRODUCT NAME: AC CONTACTOR
MODEL NUMBER:CJX2-D(LC1-D)
1.GENERAL
1.1Certificate:CE;
1.2 Electric rating:AC50/60Hz,690V,up to 620A;
1.3 Application: remote making & breaking circuits, protect circuit from over-load when assembling with thermal over-load relay, frequent start-up and control of AC motor;
1.4 Utilization category: AC-3, AC-4;
1.5 Altitude: ≤ 2000m;
1.6 Ambient temperature: -5 C~ +40°C;
1.7 Mounting category: III;
1.8 Mounting conditions: inclination between the mounting plane and the vertical plane should not exceed ±5° ;
1.9 Standard: IEC/EN 60947-4-1.

Technical Data

Items	Model		CJX2-D09	CJX2-D12	CJX2-D18	CJX2-D25	CJX2-D32
Pole			3/4
Auxiliary Contact			1 NO+ 1NC	1 NO+ 1NC	1 NO+ 1NC	1 NO+ 1NC	1 NO+ 1NC
Rated conventional heating current (A) AC-1			20	20	30	40	50
Rated Operational Current(A)	380/400V	AC-3	9	12	18	25	32
		AC-4	3.5	5	7.7	8.5	12
	660/690V	AC-3	6.6	8.9	12	18	21
		AC-4	1.5	2	3.8	4.4	7.5
Rated insulation Voltage(V AC)			690	690	690	690	690
Power of controlled 3-Phase Cage motor(AC-3)	kW	220/230V AC	2.2	3	4	5.5	7.5
		380/415V AC	4	5.5	7.5	11	15
		660/690V AC	5.5	7.5	10	15	18.5
AC Coil (V)			24,36,48,110,127,220,240,380,415,440,480,500,600
DC Coil (V)			24,36,48,110,220

Items	Model		CJX2-D40	CJX2-D50	CJX2-D65	CJX2-D80	CJX2-D95
Pole			3/4
Auxiliary Contact			1 NO+ 1NC	1 NO+ 1NC	1 NO+ 1NC	1 NO+ 1NC	1 NO+ 1NC
Rated conventional heating current (A) AC-1			60	80	80	110	110
Rated Operational Current(A)	380/400V	AC-3	40	50	65	80	95
		AC-4	18.5	24	28	37	44
	660/690V	AC-3	34	39	42	49	49
		AC-4	9	12	14	17.3	21.3
Rated insulation Voltage(V AC)			690	690	690	690	690
Power of controlled 3-Phase Cage motor(AC-3)	kW	220/230V AC	11	15	18l.5	22	25
		380/415V AC	18.5	22	30	37	45
		660/690V AC	30	37	37	45	45
AC Coil (V)			24,36,48,110,127,220,240,380,415,440,480,500,600
DC Coil (V)			24,36,48,110,220

Items	Model		CJX2-D115	CJX2-D150	CJX2-D170	CJX2-D205	CJX2-D245
Pole			3	3	3	3	3
Rated conventional heating current (A) AC-1			200	200	200	275	280
Rated Operational Current(A)	380/400V	AC-3	115	150	170	205	245
		AC-4	50	65	70	75	85
	660/690V	AC-3	70	80	100	108	115
		AC-4	25	32	35	38	40
Rated insulation Voltage(V AC)			690	690	690	690	690
Power of controlled 3-Phase Cage motor(AC-3)	kW	380/415V AC	55	75	75	90	110
		660/690V AC
			80	100	100	110	140
AC Coil (V)			24,36,48,110,127,220,240,380,415,440,480,500,600

Items	Model		CJX2-D300	CJX2-D410	CJX2-D475	CJX2-D620
Pole			3/4	3/4	3/4	3/4
Rated conventional heating current (A) AC-1			360	430	580	850
Rated Operational Current(A)	380/400V	AC-3	300	410	475	620
		AC-4	124	150	185	188
	660/690V	AC-3	190	235	290	360
		AC-4	60	72	85	170
Rated insulation Voltage(V AC)			690	690	690	690
Power of controlled 3-Phase Cage motor(AC-3)	kW	380/415V AC	160	200	250	335
		660/690V AC
			220	280	330	450
AC Coil (V)			24,36,48,110,127,220,240,380,415,440,480,500,600

ACCESSORIES

Company ProfileZhejiang Kangge Electric Co.,Ltd, with the logo CANGO, established in 2010, located in Yueqing Industrial Park, Zhejiang Province,is one of the technological enterprises in Zhejiang province,who devotes itselfto the design,R&D,manufacture, sale and service of electrical products and solar system.Since the establishment in 2010,Kangge insists on the principle of"honest-based,wining success through quality", and develop its spirit of"unity, communication, development and innovation".We continuously develop and innovate in the area of electrical products and solar system, perfect series products, to meet the demand of domestic and abroad customers.
Kangge's existing plant area is more than 50000 square meters.Total employees are more than 200,among which,15 are senior management employees;20 are professional technical engineers;8 are R&D employees.Up to now,all of Kangge's products have passed CE,the test of China Compulsory Product Certification(CCC test),ISO9001 Quality and Management System Certification,ISO14000 Environmental Management System Certification,as well as OHSAS18000 Occupational Health and Safety System Certification.
Manufacturing Technique
Exhibition Display
Certifications
Packaging & Shipping
FAQQ:Your AC CONTACTOR seems perfect but what's the difference between you and other suppliers? Because I find some cheaper price from others!
A: We strick in high quality. Products with low temperature rise,long life time and good corrosion resistance.Products pass the test of CQC and CE.
Q: Is your company a manufacturer for a trading company?
A: We are professional manufacturer in industrial electrical appliances since 2010 years.
Q:Can I get a sample for test before place order?
A:Of course.
Q:Can you print our own logo?
A:Yes, we provide OEM&ODM service.And we made a lot of customized products.
Q:How's the delivery?Because I really need them is urgently?
A:We will deliver sample in 2-5days.Mass production around 30 days.If you have urgent requirement, pls send us list to check with stock. We have sufficient stock for best-sellers.
Q: What's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C,Trade Assurance.

---
