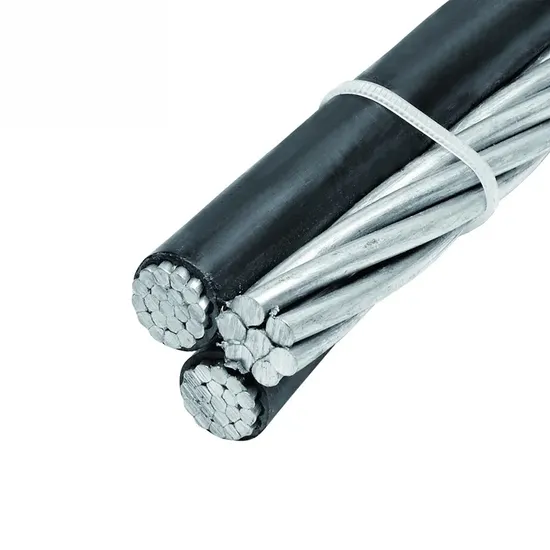

Aerial Power Cable 3X16 25 35 50 mm Electric Cable Overhead Power Transmission ABC Cable Sac Spaced Aerial Cable

Product Description

Product Description Low Voltage Overhead Insulated Cable (ABC cable),Aerial bundle cable, ABC Wire
Application:
Aerial bundle cable is used primarily for overhead and distribution line, or to supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (Pole to Pole), or street lighting. Working voltage at 600V and 1000V, ABC cable working temperature is 75ºC or 90ºC.
Applicable standards:
ABC cable are produced according to ANSI/ICEA S-70-547, ANSI/ICEA S-76-474, NFC 33-209, IEC60502-1, BS7870.50, VDE 027-626 GB/T12527 SANS1418 or the standards agreed by both of the customers and us. ICEA S-76-474 and NFC 33-209 are used widely.
Production Scope:
Voltage: 1KV and below.
Phase Core: 1 to 6 Cores, Cross section from 6AWG (13.3mm2) to 500MCM (253.4mm2).
Bare Neutral: Cross Section from 6AWG (13.3mm2) to 500MCM (253.4mm2)
Construction:
Phase Core:
Conductor: Hard bare copper wire /Aluminum wire/Aluminum alloy wire. etc.
Insulation: PVC/XLPE/PE
Neutral Conductor (optional): ACSR /AAAC/AAC
Insulation: PVC/XLPE/PE
Street Lighting core (optional):
Conductor: AAC
Insulation: PVC/XLPE/PE
* We can design and produce ABC cable according to client's requirement. Product Parameters

Number of Cores x Nominal Cross Section,No.x mm2	Nominal Thickness of Insulation mm			Approx Overall Diameter mm	Approx. mass Kg/Km	Maximum Conductor Resistance Ω/Km	Minimum Breaking Load,KN	Current Rating A
	Phase core	Neutral core	Lighting core
2×16	1.2	1.2	-	15	130	1.91	2.3	93
2×16 + 2×1.5	1.2	1.2	-	16	175	1.91 / 12.1
4×16	1.2	1.2	-	18	260	1.91		83
4×16 + 2×1.5	1.2	1.2	-	20	310	1.91 / 12.1
2×25	1.4	1.4	-	18	202	1.2	3.8	122
2×25 + 2×1.5	1.4	1.4	-	19.5	250	1.2 / 12.1
4×25	1.4	1.4	-	22	404	1.2		111
4×25 + 2×1.5	1.4	1.4	-	24	452	1.2/ 12.1
3×35 +1×54.6 + K×16 (K can be 0,1,2,3)	1.6	1.6	1.2	28.5/29.5/31/33	620/685/750/815	0.868/0.63/1.91	16.6	138/83
3×50 +1×54.6 + K×16 (K can be 0,1,2,3)	1.6	1.6	1.2	30.5/32.5/34/36	740/805/870/935	0.641/0.63/1.91		165/83
3×70 +1×54.6 + K×16 (K can be 0,1,2,3)	1.8	1.6	1.2	34.5/36/39/41	975/1040/1105/1170	0.868/0.63/1.91		213/83
3×95 +1×70+K×16 (K can be 0,1,2,3)	1.8	1.5	1.2	37/39.5/42/44	1210/1275/1340/1405	0.32/0.50/1.91	20.5	258/83
3×120 +1×70+K×16 (K can be 0,1,2,3)	1.8	1.5	1.2	38.5/40.5/43.5/46	1477/1542/1607/1672	0.253/0.50/1.91		300/83
3×120 +1×95+K×16 (K can be 0,1,2,3)	1.8	1.6	1.2	39.5/41.5/44.5/47	1535/1600/1665/1730	0.253/0.343/1.91	27.5
3×150 +1×70+K×16 (K can be 0,1,2,3)	1.7	1.5	1.2	40.5/42/44.5/48	1755/1820/1885/1950	0.206/0.50/1.91	20.5	344/83
3×150 +1×95+K×16 (K can be 0,1,2,3)	1.7	1.6	1.2	43.2/45.3/47/49	1832/1897/1961/2026	0.206/0.343/1.91	27.5

Item#	Phase Conductor	Phase Conductor Insulation	Bare Neutral Messenger Size AWG	Bare Neutral Messenger Breaking Strength	Weight Per 1000ft-XLPE	Weight Per 1000ft-PE	Ampacity-XLPE A	Ampacity-PE A
Bay	6	45mls	6	1110Lbs	145Lbs	140.0 Lbs	75	60
French coach	6	45mls	6		155Lbs	144.3 Lbs
German Coach	4	45mls	4	1760Lbs	214Lbs	208.3 Lbs	100	80
Arabian	4	45mls	4		229 Lbs	214.4 Lbs
Belgian	2	45mls	2	2800Lbs	344 Lbs	323.1 Lbs	135	105
Shetland	1/0	60mls	1/0	4460Lbs	546 Lbs	521.1 Lbs	180	140
Thoroughbred	2/0	60mls	2/0	5390Lbs	670 Lbs	641.5 Lbs	205	160
Trotter	3/0	60mls	3/0	6790Lbs	825 Lbs	791.8 Lbs	235	185
Walking	4/0	60mls	4/0	8560Lbs	1019 Lbs	979.7 Lbs	275	210

Detailed Photos
Packaging & Shipping
* We can design and produce according to client's requirement. Any requirement, feel free to contact us!
Company Profile
Established in 1994,Henway Electric Group Inc has now developed into an innovative enterprise with strong R&D ability after 20 years in
the industry. It covers an area of 210,000 square meters and has more than 2,000 employees. It has successively introduced about 2,000 items of advanced R&D, production and testing equipment. The annual production capacity exceeds 30 billion yuan.
Henway's products can be divided into four categories,namely power cable, wire &cable for electrical equipment, communication cable and building
wire.They include insulated power cable of 220KV and below, Rubber insulated cable of 35KV and below, Aerial insulated cable,overhead
conductor,Mining cable etc,a total of nearly 30 product series with nearly 4,000 types and 50,000 items.The products are widely used in the fields of infrastructure, utility, hydro-water projects, iron, mining, petroleum, chemical industry,building,subway, high-speed rail,airports,etc.
They have been exported to more than 100 countries around the world.
Henway passed ISO 9001,ISO 14001,OHSAS 18001,and successively acquired TUV certificate,CE certificate,UL certificate and so on.More than 30 years of development and cultivation makes the extraordinary achievements of Henway.Henway is still promoting the enterprise's scale,technology
and brand construction.
Heway Cable-make pioneering efforts and forge ahead !
Certifications
FAQ 1. Q:How does your factory control the quality?
A:Factory has a quick and enthusiastic merchandisers team, strict and responsible QC team, service for many well-known brands all around the world with our high-quality products and strict.
2. Q:Can I visit your company?
A: Sure,If you need,we will arrange the driver to pick you up.
3. Q:How can I get some samples?
A: Contact me on below,Determin sample and address for shipping.
4. Q:Have you ever supplied cables to our country?
A: Henway Cables have been sold to over 100 countries and regions in the world. you can contact me for details.
5. Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables. Please contact me for detail info if you have specific cable requirement.
6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.
7. Q:How long is your delivery time?
A: According to your order's quantity. Usually our lead time is 3 - 20 working days.
For more information about wires and cables, please feel free to contact us. Your inquiries will be replied to within 6 hours!!

---
