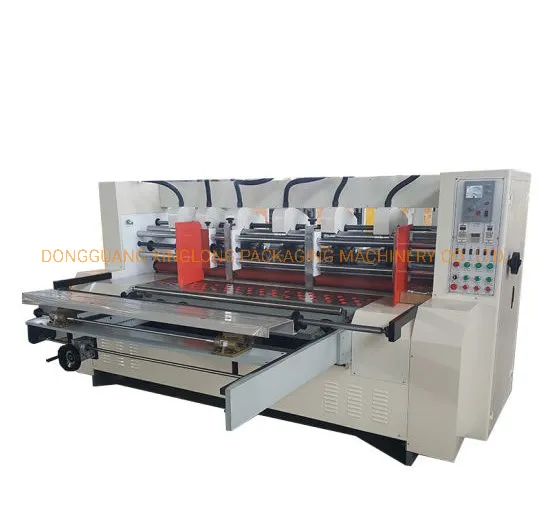

Lead Edge Feeder Thin Blade Slitter Scorer Machine for Carton Box

Product Description

New technology lead edge thin blade cardboard cutter machine
Product Description Product overview:
Automatic vacuum adsorption feeding, save labor, also can prevent paper run inclined. No need manual feeding assured the workers safety. The more shafts thin blade slitter scorer adopt two shafts in front and back of the slitter, can minimize the length of paperboard, is suitable to the common paper and the small baffle paper. Electrical adjustment of the blades work width, automatic locking, improved the working efficiency.
Functions and features:
Adjust the baffle size by lead screw, easy to operate. Can set processing paper qty, automatic stop the feeding after finishing. Automatic lead edge feeder with adsorption feeding, improve the operation security, reduce the labor intensity. .Suitable to the long paper slitting creasing. Electrical adjustment of the slitting blade work width, automatic locking, dual guide shafts, dual locking air cyliner, steady running, easy to adjust. Has the inlay o-ring seal, dust-proof, reduce the failure rate. Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr. Adopt eight rolls, two roll-rang feeding, then scoring ,easy to adjust. It can do slitting only without scoring, avoid error conveying when scoring later. Can choose automatic or manual sharpening of blade. Product Parameters

TYPE	BD-JZ-1800	BD-JZ-2000	BD-JZ-2500	BD-JZ-2700	BD-JZ-3000
Effective width	1600mm	1800mm	2300mm	2500mm	2800mm
Speed	140m/min	140m/min	140m/min	140m/min	140m/min
Total power	3kw	4kw	5kw	5kw	5kw
Min. Slitter-spacing	120mm	120mm	120kw	120kw	120mm
Min. Score-spacing	30mm	30mm	30mm	30mm	30mm
Min. Paper length	260mm	260mm	260mm	260mm	260mm
Dimensions L x W x H(mm)	2440*770*1350	2640*770*1350	3140*770*1350	3340*770*1350	3640*770*1350

Scorers move by manual
Scorers move by electric(Optional)
Min. Slitting width: 130mm
Blade move by electric
Min. Paper length: 260mm(450mm if choose electric adjust for scorer)Stacker Unit
1.Maximum stack height:300mm
2.Maximum stack length:1100mm(Maximum length of the board)
3.Stack unit size:3000*2800*1200mm
Company Profile
DONGGUANG XINGLONG PACKAGING MACHINERY CO., LTD. is specialized in the production of various kinds of carton equipments of the well-know enterprise.
Factory for over twenty years, we introduced advanced technology at home and abroad, developing and manufacturing products, has been well received by customer.
We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment .products are distributed Russia ,the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country. Product quality and enterprise reputation get the high praise at home and abroad.
Over the years the company take "the quality first" "integrity-based" corporate purpose always meet user're-equipments as our sole purpose, providing the products with excellent quality, professional technology. Our company is willing to cooperate with domestic and foreign insight, strive for innovation, coexist win-win, hand in hand altogether will create packaging future.
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.
2. Q: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
3. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.

---
