Product Details
Product Description
Product Description
1-Application:
The machine is used for drawing Al or Al-Alloy rod from 9.0mm to 1.7-4.8mm.
Outlet wire can go to dual take up device or coiler.
2-Feature:
1.Capstan Diamter: 450mm
2.Max.Dies Quantity: 9,11,13
3.Main Motor: 75-315KW
4.Speed Range: 10-15m/s
3-Parameters:

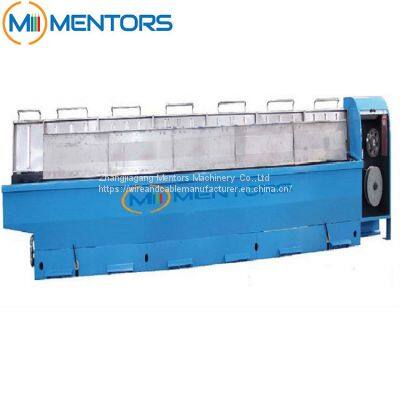

| SY-LHD450/11 Al or Al-alloy Rod Breakdown Machine |
| Machine type | LHD450/11 |
|
| Inlet Dia. (mm) | Ф9.5 |
| Outlet Dia. (mm) | Al | Ф2.2-Ф4.8 |
|
| Al-alloy | Ф2.8-Ф4.5 |
|
| Drawing drum Dia. (mm) | Ф450 |
|
| Fix speed capstan Dia. (mm) | Ф450 |
|
| Max. Die No. | 11 |
|
| Drawing speed (Max) (m/s) | 22 |
|
| Main motor (KW) | Al | 220 (DC) |
|
| Al-alloy | 280 (DC) |
|
| Fix speed capstan motor | 75 (DC) |
| Drum arrangement | Horizontal type |
| Drawing drum | Coated by tungsten |
| Drum lubrication type | Immersed type |
| Take-up bobbin | PND 630 / PND 500 |
| Take-up motor (KW) | 22×2 |
| Take-up bobbin loading type | Pneumatic type |
4-Advantage
1. Iron cast gear box body ensure long life with low noise.
2. Horizontal structure, operate easily.
3. Fast die change system keep high efficiency when produce different diameter. And dies quantity decrease a lot at the same time.
4. The capstan is coated with tungsten carbide power can support long life.
5. There is a small inclination between the axis of the drawing capstans and the gear box transmission axis.
This special design can avoid the wire from overlapping with each other on the drawing capstan surface,
while maintaining a straight path from the first capstan up to the last one.
6. High precision gear is producing by Germany gear grinding machine, high efficiency, low noise.
7. PLC and touch screen controlled type, parameters can be set and display easily.
5-Delivery time: 90 working days
6-After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer's roundtrip flight tickets, board and lodging, the security as well as each person of daily wage.
7-Guarantee:
12 months since shipping date(exclude easily wearing part)
>>
