Olt Ma5800 Smartax 5800X7 Ma5800-X7 Ma5800 X7 Ma-5800 X7 Gpon Olt with Gphf C++ Service Board Gepon Olt Price

Product Description

MA5800-X7 of Series MA5800 X2 X7 X15 X17 FTTH 10G uplink GPON

Model Number	Warranty Time	Power Supply	Network	Service
MA5800-X7 OLT	1 year	DC	Wired LAN, TCP, GPRS	Voice/CATV/Ethernet/NGN

Introducing the HUAWEI OLT MA5800-X7, an advanced Optical Line Terminal that sets new standards for fiber optic networks. Designed to meet the surging demands of modern connectivity, this OLT supports GPON, XG-PON, XGS-PON, and NG-PON2 technologies, ensuring lightning-fast data transmission and seamless connectivity for high-bandwidth services.
With its modular and high-density design, the MA5800-X7 offers unmatched scalability, empowering service providers and businesses to expand their networks effortlessly.
Equipped with a sophisticated management system, configuring and monitoring the OLT becomes a breeze. Additionally, its energy-efficient design reduces power consumption, minimizing operational costs while promoting eco-friendliness.
Upgrade your network infrastructure with the HUAWEI OLT MA5800-X7 and stay ahead in the digital era, experiencing superior performance, enhanced capacity, and unrivaled reliability for the ever-evolving communication landscape.
Huawei SmartAX EA5800-X17

Brand	Huawei
Model	EA5800-X7
Supported Cabinet	N63E-22
Board Configuration	Control board slots
	Service board or upstream interface board slots
	Universal interface board slot
	Powerboard slots
Dimensions	11U high and 21 inches wide
(W x D x H)	Excluding mounting brackets: 493 mm x 287 mm x 486 mm
	Including mounting brackets: 535 mm x 287 mm x 486 mm
Maximum Input Current	60A
Power Supply Modes	DC power support (dual for backup)
Working Voltage Range	-38.4V to -72V DC
Rated voltage	-48V/-60V
Switching Capacity of the Control Board (load sharing mode)	3.6 Tbit/s
Maximum Bandwidth per Service Slot (load sharing mode)	100 Gbit/s
System Layer 2 Packet Forwarding Rate (load sharing mode)	5,298 Mpps
GPON Ports/ XG(S)-PON Ports	272
GE/FE Ports	816
10 GE Ports	408

Huawei SmartAX EA5800 X7 Product Features Based on the distributed architecture, it provides users with broadband, wireless, video, surveillance and other multi-service unified bearer platforms; Providing GPON, XG-PON, XGS-PON, GE and 10GE access, support multiple network construction modes including POL, FTTH, FTTB, FTTC, realize a fibre-optic network coverage, simplifying network architecture and reduce OPEX ; Supporting three major product specifications, large, medium and small, to meet the needs of different scenarios. Supporting GPON, 10G PON, smoothly evolve to 40G/100G PON Supporting 4*GE/10GE upstream ports embedded in Main Control Board MPSC Supporting 16 port GPON interface card GPHF, GPSF Supporting 8 port 10GPON interface card XGHD, TWED Supporting 262143 MAC address, 65536 ARP table Supporting over 8 times MAC address and ARP table more than MA5600T Supporting 1:64 eOTDR Supports DOCSIS 3.1 standard Huawei SmartAX EA5800 X7 and EA5800-X15 EA5800-X17 EA5800-X2 Compare

#	EA5800-X17	EA5800-X15	EA5800-X7	EA5800-X2
Supported Cabinets	N63E-22	N66E-22	N63E-22, N66E-22	N63E-22
Dimensions	11U high and 21 inches wide	11U high and 19 inches wide	6U high and 19 inches wide	2U high and 19 inches wide
(W x D x H)	Excluding mounting brackets: 493 mm x 287 mm x 486 mm	Excluding mounting brackets: 442 mm x 287 mm x 486 mm	Excluding mounting brackets: 442 mm x 268.7 mm x 263.9 mm	Excluding mounting brackets: 442 mm x 268.7 mm x 88.1 mm
Maximum Weight (including mounting brackets)	45 kg	35 kg	26 kg	9.4 kg
Maximum Input Current	60A	60A	40A	DC power supply: 20A
				AC power supply: 8A
Power Supply Modes	DC power support (dual for backup)	DC power support (dual for backup)	DC power support (dual for backup)	DC power support (dual for backup)
				AC power supply + battery for backup
Working Voltage Range	-38.4V to -72V DC	-38.4V to -72V DC	-38.4V to -72V DC	DC power supply: -38.4V to -72V
				AC power supply: 100V to 240V
Rated voltage	-48V/-60V	-48V/-60V	-48V/-60V	DC power supply: -48V/-60V
				AC power supply: 110V/220V
Switching Capacity of the Control Board (load sharing mode)	3.6 Tbit/s	3.6 Tbit/s	3.6 Tbit/s	480 Gbit/s
Maximum Bandwidth per Service Slot (load sharing mode)	100 Gbit/s	100 Gbit/s	100 Gbit/s	80 Gbit/s
System Layer 2 Packet Forwarding Rate (load sharing mode)	5,298 Mpps	5,298 Mpps	5,298 Mpps	714 Mpps
Maximum Number of Concurrent 4K Video Users	16,000	16,000	8,000	2,000
Maximum Number of MAC Addresses	262,143	262,143	262,143	262,143
Maximum Number of ARP/Routing Entries	131,072	131,072	131,072	131,072
GPON Ports/ XG(S)-PON Ports	272	240	112	32
GE/FE Ports	816	720	336	96
10 GE Ports	408	360	168	16

Huawei SmartAX EA5800 X7 Ordering Info

Category	Model	Description

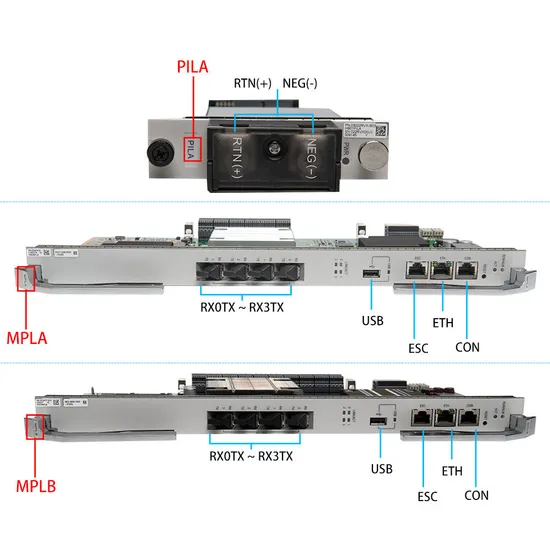

Control Boards	H902MPLAE	Huawei SmartAX EA5800 X7 Main Processing Board
	H901MPSCE	Huawei SmartAX EA5800 X7 Main Processing Board
Universal Interface Boards	H901CIUA	Huawei SmartAX EA5800 X7 Combo Interface Transfer Board
Service Boards	H901XGHD	Huawei SmartAX EA5800 X7 8-port Advanced XG-PON OLT Interface Board
	H901OGHK	Huawei SmartAX EA5800 X7 48-port Advanced GE/FE Optical Interface Board
	H901OXHD	Huawei SmartAX EA5800 X7 8-port Advanced 10GE Optical Interface Board
	H902OXHD	Huawei SmartAX EA5800 X7 8-port Advanced 10GE Optical Interface Board
	H901GPSFE	Huawei SmartAX EA5800 X7 16-port GPON OLT Interface Board
	H901OXEG	Huawei SmartAX EA5800 X7 24 port Aggregationed 10GE/GE Optical Interface Board
	H901TWEDE	Huawei SmartAX EA5800 X7 8-port Enhanced XGS-PON OLT Interface Board
	H901XSHF	Huawei SmartAX EA5800 X7 16-port XGS-PON OLT Interface Board
	H902GPHF	Huawei SmartAX EA5800 X7 16-port GPON OLT Interface Board
Upstream Interface Board	H901NXED	Huawei SmartAX EA5800 X7 8-port Enhanced 10GE Uplink Interface Board
Power Boards	H901PILA	Huawei SmartAX EA5800 X7 Power Transfer Board
	H901PISA	Huawei SmartAX EA5800 X7 Power Transfer Board
	H901PISB	Huawei SmartAX EA5800 X7 Power Transfer Board
	H902PISB	Huawei SmartAX EA5800 X7 Power Transfer Board
FAN Monitoring Boards	H901FMLA	Huawei SmartAX EA5800 X7 Huawei SmartAX EA5800 X7-X7 fan tray

Product Pictures:

---
