Product Description

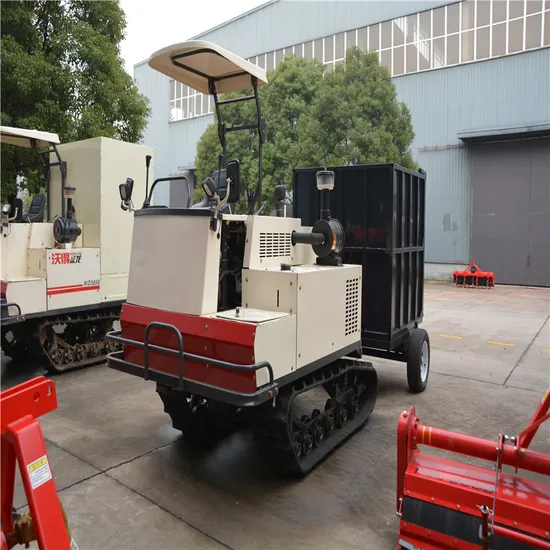

Agricultural Equipment Farm Machinery Crawler Rotary Tiller Made In China
Feature:
Three points suspension for different implements.
Adopt hydraulic lifting mechanism for meeting rotary tiller working on rigid soil.
Widen rubber track with less ground touch pressure ensures machine easily pass through deep mud field.
Use improted HST, one lever control steering and implement lifted by hydraulic means, easy operation.
Equipped with self resecure mechanism, easy working in the paddy field.
Parameters as below:

Model		WD3100
Structure		track type
Overall size (length*width*heith)(mm)		3894*2565*2615
Weight(kg)		2380
Working efficiency(hm²/h)		≥0.38
Guage(mm)		1150
Track regulation	Standard	450mm*90mm*51
	Standard	450mm*90mm*51
	Standard	high teeth
Rotating Speed(r/mm)		780
Adopting engine	Rated power(HP)	102
	Rotating Speed(r/min)	2600
Rotary part	Width(mm)	2300
	Tilling depth(mm)	≥80
	Numbers of rotary blade	100
	Type of rotary blade	T175
	Speed of knife shaft(r/min)	280

---
