X6325 X6325D New Style Good Quality High Precision Metal Conventional Milling Machine

US$3,000.00-3,300.00 1 Piece (MOQ)

Basic Info.

Model NO.
X6325
Power Source
Manual
Automatic Grade
Manual
Setting Mode
Table
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table Size
254X1270 / 254X1370mm
Longitudinal Travel
780 / 950mm
Transverse Travel
420 / 400mm
Vertical Travel
420mm
T Slot No. and Size
3X16mm
RAM Travel
470mm
Spindle Taper
R8/ISO30/ISO40
Spindle Travel
127mm
Spindle Motor
2.2kw
Transport Package
Wood CTN
Specification
1280x1100x2080mm
Trademark
JYME
Origin
China
Production Capacity
1000

Product Description

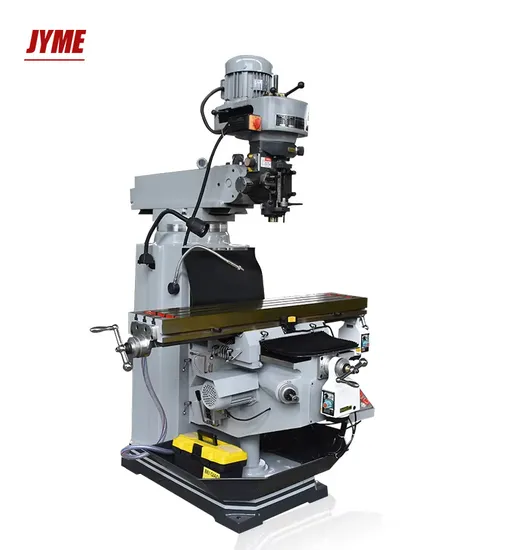

The milling machine is a kind of universal light duty metal cutting machine,Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc.. Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
Parameters:
Specifications
unit
X6325
Table size
mm
254x1270 / 254x1370
Longitudinal travel
mm
780 / 950
Transverse travel
mm
420 / 400
Vertical travel
mm
420
T slot no. and size
mm
3x16
Ram travel
mm
470
Distance from spindle nose to table surface
mm
0-405
Spindle taper

standard: R8

Optionl:ISO30/ISO40
Spindle travel
mm
127
Spindle speed
rpm
standard: (50HZ) 65-4500 16steps
optional: (variable)65-4500
Auto quill feed
mm/rev
0.04/0.08/0.15
Spindle motor
kw
2.2
Head swivel

90°
Head tilting

45°
