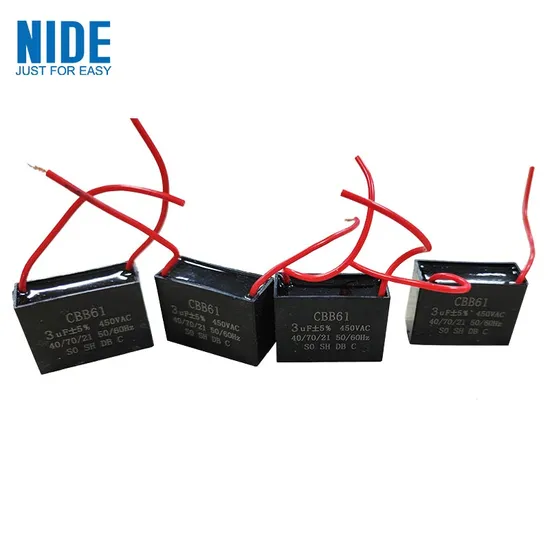

CBB61 Air Conditioner Ceiling Fan Capacitor 3UF 450V for AC Motor
CBB61 starting capacitor is suitable for the starting and running of a single-phase motor with a frequency of 50HZ/60HZ AC power supply, and can also play a role in speed regulation of the motor. The CBB61 capacitor is an important supporting component for electric fans, range hoods, air-conditioning fans, and bread machines.
| Product Name: | AC Motor Capacitor |
| Model: | CBB61 |
| Material: | Metal Plastic; |
| Voltage: | 250VAC,370VAC,440VAC,450VAC 50/60Hz |
| Max.TEMP: | 70°C |
| Size: | 38X27X16MM |
| Reference standards: | GB/T 3667.1 ( IEC60252-1 ) |
| Climatic category: | 40/ 70/21,40/85/21 |
| Class of operation | Class B (10000h) Class C (3000h) |
| Class of safety protection | S0 /S3 |
| Capacitance range | 1~35μ F |
| Capacitance tolerance | +-5%,+-10%,+-15% |
| Dissipation factor | 20x10^(-4) ( 100Hz, 20°C ) |
| Test voltage terminalto terminal UTT | 2Un for 2 seconds |
| Test voltage terminal to caseUTC | (2Un+ 1000)VAC or 2000VAC- 50Hz for 60 seconds |
| RC | ≥3000s (100Hz, 20°C,1min) |
