High Speed Nonwoven Bouffant Cap Making Machine for Factory

Product Description

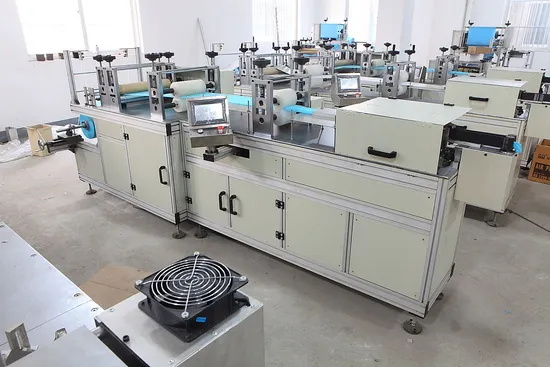

high speed nonwoven bouffant cap making machine for factory
B Technical Parameter :
Supply Power: AC380V or 220V 50HZ
Power : 6.5kw
Optimum Speed : 60-100pcs/minute
Dimensions : 3330*900*1350mm(L*W*H)
Net Weight:750kg
C Operating Program
1.Adjust the non-woven fabric plate and tension equipment.
2.Pull the non-woven fabrics into folding and welding manually.
3. Elastic feeding and pull into the Ultrasonic welding.
4.Open the main machine slowly, then start to welding and cutting.
D. INSTRUCTIONS: Ultrasonic : 3sets Motor: TaiWan "YongKun" 3.Touch screen: TaiWan "Wei- Lun"
4.Inverter: TaiWan "Sunfar"
5.PLC: Japan "Mitsubishi"
6.Sensor: Japan"OMRON"
E Maintenance
1.Please start the ultrasonic welding equipment before open the main machine to avoid the superimposed load damage the ultrasonic equipment.
2.Adjust the ultrasonic mould pressure, too big may burnout it,too small may press unwell.
3.The pulling should be in balance when elastic feeding, or it may folding unwell.
F Advantages
1.This machine has aluminum alloy rack and will not get rusted permanently.
2.It's touch-operated.
3.With imported brake and motor,it has low noise.
4.With ultrasonic welding,automatically controls tension.
5.With no manual operation from feeding materials.
Payment: After 30% of the total value is paid in advance by (T/T),
The left 70% should be paid by (T/T) after you check up the finished
machine. And the cargo will be delivered after all the payment
arrives at our account.
Delivered time: 50days after confirm the order
Warrant term: 1 year
Package:Wooden Packing
Installation and test: The buyer should pay the round tickets, visa fee, food and accommodation in your country and our engineers $80 per day if you need our training and installation abroad.

---
