Bm612 Digital PIR Sensor Digital Smart Anti-Interference Infrared PIR Motion Sensor Am612 with 6 Pins

Product Description

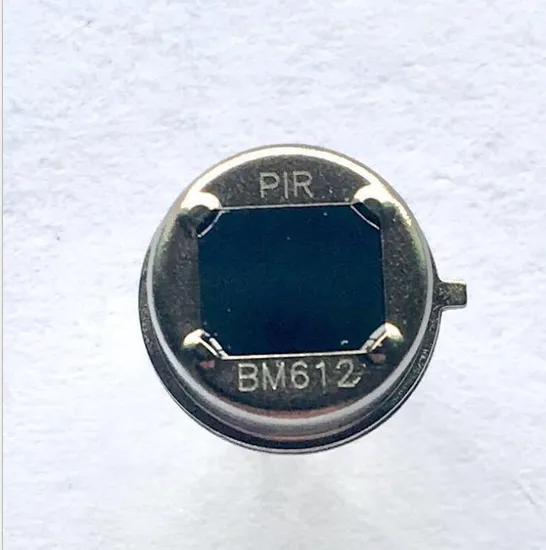

6 pins Digital smart anti-interference infrared PIR motion sensor BM612
Upgraded Digital smart anti-interference infrared PIR motion sensor BM612
we can accept all sorts of functions with customized products.
For example: the size/output signal/Operating voltage/power etc would be optional.
Our company is a factory, we concentrate on this business more than 20years, so there have many types, KP506B,RE200B,KP500B, LHI778, LHI878, LHI968, D203S, D203B,AM312,HM612,AM612 and many others. If you are interested in, please send inquiry to us.
Product Description
AM612 is a newest smart digital motion detector. This Smart digital detector offers a complete motion detector solution,with all electronic circuitry built into the detector housing. Only a power supply and power-switching components need to be added to make the entire motion switch, a timer is included. The series has versions which can include ambient light level and sensitivity adjustments.
Features and Benefits
Digital signal processing(DSP)
Power adjustable, save more energy
Two-way differential high impedance sensor input
Built-in filter, screen the interference by other frequency
Excellent power supply rejection, Insensitive to RF interference
Schmidt REL output
Low voltage, low power consumption, instantaneous settling after
power up
Applications
Toys
Digital photo frame
TV, Refrigerator, Air-conditioner
USB Alarms
PIR motion detection
Intruder detection
Occupancy detection
Motion sensor lights
Computer monitor
Security system
Automatic control for indoor, corridor and stairs lights, etc.

PIR Infrared Detector Technical Data:

1. Maximum Ratings

Parameter	Symbol	Min	Max	Unit	Remarks
Supply Voltage	VDD	-0.3	3.6	V
Operating Temp	TST	-20	85	°C
Current into any pin	Into	-100	100	mA
Storage Temp	TST	-40	125	°C

2. Operating Conditions (T=25°C, VDD=3V, Except Other Requirement)

Parameter	Symbol	Min	Typical	Max	Unit	Remarks
Supply Voltage	VDD	2.7	3	3.3	V	IR=0.5mA
Working Current	IDD	12	15	20	uA
Sensitivity Threshold Value	Vsens	120		530	uV	Ajustable
Output REL
Output Low Current	IOL	10			mA	VOL<1V
Output High Current	IOH			-10	mA	VOH>(VDD-1V)

REL Low Level Output Blockade Time	TOL		2.3		Second	Non-ajustable
REL High Level Output Delay Time	TOH	2.3		4793	Second	Ajustable

About Haiwang
Shenzhen Haiwang Sensor Co., Ltd is specialized in developing, manufacturing and export of photo resistor, thermisters, sensors, optical lenses and other sensitive components.
Our products include photoresistance, photosensitive sensor, thermistor, pyroelectric infrared sensor,
infrared induction IC, fresnel lens, LED lens and other related sensitive components.

---
