US$0.20-1.20
|
1 Piece
(MOQ)
|
Basic Info.
Main Diameter Size
1000, 1200, 1400, 1600mm
Shipment
by Express/by Air/by Sea
Transport Package
Carton/Wooden Case
Production Capacity
1500 PCS/Day
Product Description

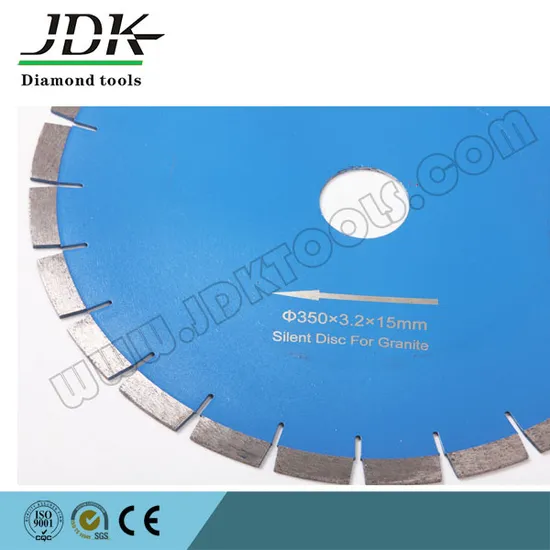

Description of diamond saw blade:
Flat Segment Blade (Product Code: JDK-FG) |
Features: |
1.The blade has good sharpness and high effiency at the process of cutting. |
2.Perfect high working performance without chip or beaking slates while cutting |
Product Name | Specification | Core Thickness | Segment Dimension | Segment Number | Application |
JDK-FG | Φ300 | 2.2/2.0 | 40x3.2x12(15) | 21 | Granite/Sandstone |
Φ350 | 2.4/2.2 | 40x3.2x12(15) | 24 |
Φ400 | 2.8/2.4 | 40x3.6x12(15) | 28 |
Φ450 | 2.8/2.6 | 40x4.0x12(15) | 32 |
Φ500 | 3.2/2.8 | 40x4.0x12(15) | 36 |
Φ550 | 3.2/3.0 | 40x4.2x12(15) | 38 |
Φ600 | 3.6/3.2 | 40x4.6x12(15) | 42 |
Φ650 | 4.0/3.6 | 40x4.6x12(15) | 42 |
Φ700 | 4.0/3.8 | 40x5.0x12(15) | 50 |
Φ800 | 4.5/4.2 | 40x5.5x12(15) | 57 |
Other specification are availabel upon your request.
Our Feature:
Factory == Own Exporting License == Quality Control == Competitive Price == Own Technology == OEM
Our advantage:
1. Manufacturer with more than 15 years experience
2. A great quantity of formula special for all kinds of different stone
3. Approved quality with factory competitive price
4. Long lifespan, good sharpness, stable performance and high cutting efficiency
5. Sandwich, groove type segment with shape straight, trapezia, boatshape, K, V, etc
6. Custom-design can be meet upon request, small trial order available any time, sample for testing can be delivery in very short time.
Payment:
T/T, Western Union, L/C, Cash
Delivery time:
For samples, shipped within 3 days after receiving the deposit,
For regular order, around 3-7 days, depends on the quantity of your order.
Packaging:
The inner packaging is carton box .The outer packaging is carton box Or woodencase.(If by air ,carton box will reduce the weight, if by sea, we suggest woodenbox for waterproof.
Shipment:
<45kg, express service is recommonded
>45kg, air or sea is a better choice 45kgs
>>
