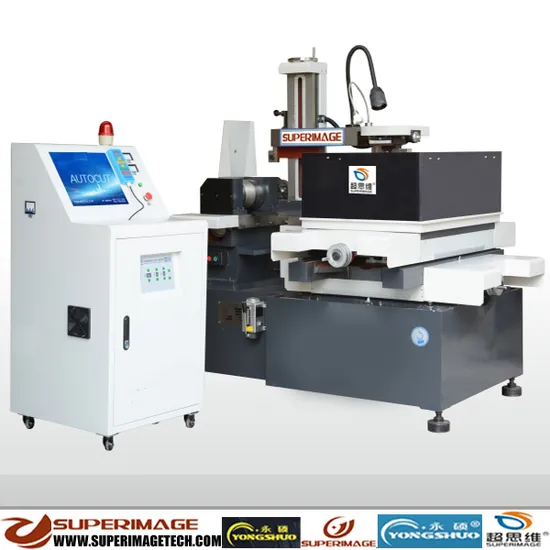

400mm*500mm Middle-Speed CNC Wire-Cut EDM Machine Wedm-Ysdk7745m

Product Description

1. Products Name:
400mm*500mm Middle-Speed CNC Wire Electrical Discharge Machine
CNC Wire-Cut Machine EDM
Middle-Speed CNC Wire Cut EDM
Middle-Speed CNC EDM Wire Cut Machine
Cost-saved Middle-Speed CNC Wirecut EDM
CNC WIRE CUT EDM
4-Axis CNC WEDM
4 AXIS CNC EDM WIRE CUT
400mm*500mm CNC WEDM
WORK TABLE 500*785MM CNC WEDM
WIRE-CUT EDM WITH WORK TABLE 500*785MM
400mm*500mm ADVANCED MIDDLE-SPEED CNC WIRE CUTTING MACHINE
2. Basic Technical Data:

TECHNICAL DATA	WEDM-YSDK7745M
CONTROL SYSTEM & AXIS QTY.	AUTOCUT, 4 AXIS
XY AXIS TRAVELING DISTANCE	400*500MM
WORKTABLE SIZE	500*785MM
MAX.LOADING WEIGHT OF WORKTABLE	600KG
MOTOR DRIVING MODE	STEPPING MOTOR DRIVE
MACHINING SURFACE ROUGHNESS	Ra≤1.0UM
MAX.CUTTING THICKNESS	500MM
MAX.CUTTING SLOPE/WORKPIECE THICKNESS	+60/100
MAX.CUTTING SPEED	≥10000MM2/HOUR
MULTI-CUTTER MACHINING PRECISION	≤0.01MM
THREE-CUTTER AVERAGE MACHINING SPEED	≥5000MM2/HOUR
SCREWS RUNNING SPEED	FREQUENCY CONTROL ADJUSTABLE
DIAMETER OF ELECTRODE WIRE	Φ0.1-0.25MM
MACHINE RUNNGING POWER	1.5KW
MAX.MACHINING CURRENT	8A
MACHINE SIZE	1708MM*1460MM*1730MM
MACHINE WEIGHT	1800KG
HARDWARE CONFIGURATION & INTERFACE	SCHNEIDER ELECTRIC,USB,LAN/RS232
OPERATION PANEL & LANGUAGE	ENGLISH,JAPAN,RUSSIA,ETC

3. Payment methods
By T/T in advance;
Down payment: 50% of total amount. Before delivery, 50% balance need to be paid.
4. Delivery time:
By Sea
Delivery time: about 25-30 days.
5. Quality Warranty:
SuperImage offers "3R" quality warranty for our CNC Mach-"Replacement, Return, and Refund" will be guaranteed for inferior quality products.

---
