High Precision Gear Drive Bf45V Fresadora Metal Universal Drilling Milling Machine

Product Description

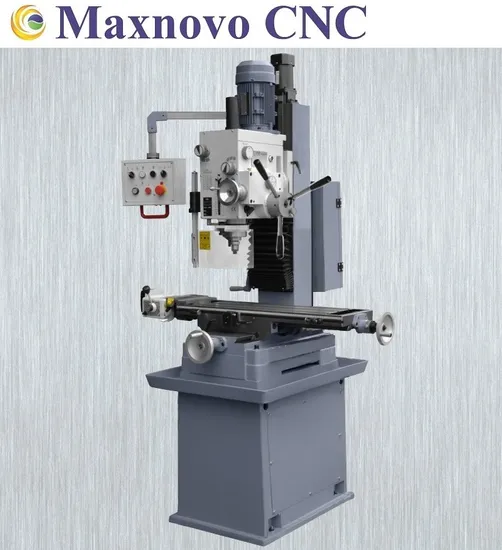

MM-BF45V - High Precision Gear Drive Metal Universal Drilling Milling Machine - MAXNOVO MACHINE
This MM-BF45V is the High Precision Gear Drive Metal Universal Drilling Milling Machine / Milling Machine / Mill Drill / Drilling Milling Machine / Mill Machine / Mini Milling Machine / Drill Mill Machine / Drilling and Milling Machine / and the Max Drilling Capacity is Diameter 45 mm with Longer working table up to 800 X 240 mm . Making this drilling milling machine truly versatile is the standard accessory include all major accessories such as table power feed (X-axis), central lubrication, Coolant System, LED working light, cast iron Machine Stand to make it ideal for mechanics, repair shops, industry factories and for training purpose.
Product Description

High Precision Gear Drive Powerful Universal Drilling Milling Machine with machine base made of cast iron
Main Feature :
Facts that impress in terms of quality, performance and price Max. Drilling Capacity 45 mm Gear drive headstock Heavy, solid cast design Smooth action due to polished gear-wheels running in an oil sump Right-handed / Left-handed rotation Automatic spindle sleeve feed with manual fine feed Motorized positioning of the Z-axis Gear head inclined through ± 60 degree Solid grey cast-iron machine stand base eliminates vibrations Adjustable V-ledges Two-stage industrial quality electrical motor Rigid base with storage room is included Infinitely variable feed on Cross Table (X-axis) is included Automatic table feed with rapid feed allows quick table adjustment in X-axis Hand-wheel for quill micro-feed Large speed range from 75 - 3200 min due to 12 switchable speeds Motorized cutter head movement and hand-wheel for exact positioning of head Premium cast-iron machine frame with adjustable dovetail guides on all axes Hardened gear racks and shafts for quiet operation and long life Manual central lubrication for all guide-ways Certificate of Original (CO, FORM A, FORM E, FORM F)

Product Parameters

Technical Data :

Product Name :	Gear Drive High Precision Drilling Milling Machine
Product Item :	MM-BF45V
Drive Type :	Gear Drive
Drilling Milling Capacity
Max. Drilling Capacity :	Ø 45 mm
Max. Face Milling Capacity :	Ø 80 mm
Max. End Milling Capacity :	Ø 32 mm
Cross Table
Table Size :	800 X 240 mm
Distance from Spindle to Cross Table :	460 mm
T-slot Size :	3 piece X 14 mm (width) X 80 mm (spacing)
Drilling Milling Head
Spindle Speed :	75 - 3200 min (12 steps)
Swivel Range :	± 45 degree
Spindle Seat
Spindle Sleeve Stroke :	120 mm
Spindle Taper :	MT4
Spindle Sleeve Diameter :	Ø 75 mm
Throat :	258 mm
Travels
X-axis Travel (Longitudinal Travel) :	560 mm
Y-axis Travel (Cross Table Travel) :	195 mm
Z-axis Travel (Vertical Head Travel) :	350 mm
Drive Capacity
Main Motor :	1500W / 1100W (two-stage quality motor)
Connecting Voltage :	Three Phase 400V
Gross Weight :	528 KGS
Packing Size :	1600 X 930 X 2110 mm
Standard Accessory :	Cross Table Power Feed (X-axis), Coolant System, Machine Base, Machine light , Morse Taper Drill Sleeve , Drill Chuck, Drawbar , Tools and Toolbox
Optional Accessory :	3-axis Digital Position Indicator is Optional Spare Part

Our Advantages

Guarantee of Quality The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.
There are same or similar products on the market, however, those products could not meet the MAXNOVO MACHINE strict quality.
Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance. Laser Interferometer Testing Equipment Well trained quality control department is the first contact for adhering to quality on site.
They are responsible for the dimensional accuracy of the components as well as their control and the quality of the manufacturing process.
A team of quality control engineers directly influences the production process on site by regular training courses and tests.
What is more, they are closing working together with the technical department in the factory.
Due to this intensive care at the production site we are able to achieve literally the MAXNOVO MACHINE. The Metal Scraper Craftsmanship is one of the most important techniques in machine tool industry. To make sure the surface perfectly flat
and smooth, we repeat check and scrap by hand with Time-Proven Unique Techniques that passed on to generations.
At MAXNOVO MACHINE, we strictly enforced that all our contact surfaces must be scrapped with at least 20 spots per square inch
and 40% of contact rate. This can guarantee the True Geometric Accuracy for our high precision machines . Casting is the core of machines, we underscores the importance of its development and production.
At MAXNOVO MACHINE, each casting piece passes various tests, such as high-pressure spray, annealing furnace,
and stress release to assure its stability. This can guarantee all customers with excellent quality of machine parts. The Excellent Quality is our dignity. At MAXNOVO MACHINE, our team is insisting on examining every single part of work-pieces
with strictly high quality standards. In order to fulfill the Large-scale manufacturing requirements in various machine tools, we invested a great deal of resources
and man power in innovating its manufacturing technology. At MAXNOVO MACHINE, the whole machining line is completed
in a temperature-controlled environment so as to maintain this outstanding quality and excellent accuracy. Intensively Production Since 2003 the MAXNOVO MACHINE produces a large part of its metal working machines in its own factory in Yangzhou in China.
There, the quality is controlled by the Germany Quality Management Representatives on-site. The final assembly and commissioning
of our MAXNOVO MACHINE products provide added value and allows perfect long-term working with the machine.
We never compromise on any materials validation and accurate quality control (IQC, IPQC, OQC) from start to finish.
From all the production material even a single resistor or a single cable, to hardware functions and sample test,we check
all the components and each possible performance of them. With every product we supply, we will make sure there is no mistake.
But due to some unavoidable reasons, if your purchase products from us are proven to be defective,we always
would take responsibility and take effective actions immediately for you.
High Precision Milling Machine for Demanding Users !
FAQ :
1.Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.

2. Question : How can I get some product samples ?
Answer : We are honored to offer you good product samples. New clients are expected to pay for the product sample cost and the international transportation cost. Product Sample cost would be deducted from the customers' next mass production purchase order in future.

3. Question : How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control , In Process Quality Control , Outgoing Quality Control , Environment Control, Product Traceability System , Internal Audits & Calibration, Equipment Control & Maintenance , Control of Non-Conforming Materials and etc.

4. Question : What is the average delivery time ?
Answer : Most of the time, it would be around 1 -- 2 month since after confirm receiving customers' contract money. For mass production purchase order at big quantity, the delivery time could be discussed with each other case by case.

---
