High Efficiency Jwf1566e Automatic Cotton Ring Frame Machine for Spinning Production Line

Product Description

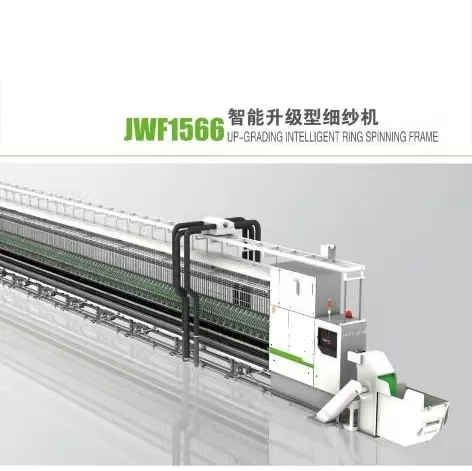

JINGWEI Brand JWF1566E Up-grading Intelligent Ring Spinning Frame
24h Online Customer Service

Product Description
JWF1566E electronic draft spinning frame utilizes JWF1566 frame as the technical reliance,sustains the technologyadvantages ofJWF1566 spinning frame, and realizes the spindle and roller separation transmission technology and on-lineadjustment technology of spinning process. By simplifying the adjustment procedures of spinning process, reducing laborusing and enhancing labor productivity, the complete machine reaches the international advanced level.
Our Advantages
Precise head transmition --High quality yarn base
New type of high precision frame--One-piece central
wallboard, new type of anti-deformation and high
precision rail, pin hole positioning, zero adjustment and
fast installation, high speed guarantee.
Jinwei quality products without mechanical wave
roller --High quality yarn guarantee
Oil bath lubrication, permanently stable tail shaft
structure (patent technology)-Durable, least maintenance costs
New tray conveying mechanism(patent
technology)-Auto-doffng process effciently
New gas holder internal and external cycloidal
units-The core of automatic doffng
Rapid doffng technology -Effectively improve the
operation effciency and output
Automatic bobbin readying unit (patent technology)-
Labor saving and effort saving guarantee
Three roller compact spinning system/four roller
compact spinning system
Pin hole positioning technology--Precise
installation, shorten the installation time

EXPANSION FUNCTIONS
Roving circulatory system/bunchy
Individual spindle broken-end detectionRoving feeding stop system
Yarn gripping technology and electronic brake system
Soft and smooth ring spinning unit
Electronic drafting system
Product Parameters
★ Use the spindle and roller separation transmision technology, guarantee synchronous transmision of spindle and roller withthe encoder tracking technology to effectively increase the yarn reserving rate.
★ Using high-precision servo system to control roller transmission, and guarantee the roller transmission synchronicity withpulse following technology,
★ Simple and convenient textile process adjustment
★ Display screen adopts fat and graphic display technology, simplifed operation, and enhanced efficiency.
★ No modifcation required to realize the function of spinning bunchy yarn (embedded software, optional)
★ Individual spindle broken-end detection (optional) to reduce the labor intensity of machinists.
Installation Instructions
Details Showing

Description	Specifications	Remarks
No. of spindles	1008 spindles/1200spindles
Spindle gauge	70mm
Lift(mm)	180mm ( Suitable for tube length 210mm)
Ring Dia. (mm)	PG1-38/40/4254D Ring cup with chromium plated	Determined by the customer
Width of ring flange	3.2mm
Yarn Spun	Tex 4.86~97.2 (Ne6~120)
Twist Range (T/m)	230~1740 T/m
Fibre length	Below 40 mm
Twist direction	Z twist
Nature of fibre	Carded cotton
Spindle speed(r/min)	12,000~20,000 rpm	Mechanical Speed
Drafting ratio	Total: 10~50, rear zone: 1.06~1.53	( Drafting gear: standard step-8 )
Twist direction	Z
Spindle driving	One tin pulley for 4 spindles
Drafting system	3-line rollers, long-short aprons, pendulum arm weighting	Pendulum Arm YJ20-142
Rubber cots		Shore hardness should be decided by the customer
Rubber aprons	With	Chinese famous brand
Bottom roller diameter(mm)	3 lines, Φ27XΦ27XΦ27
(Bearings for Main shaft and drafting )		Made in China
Creel	Single tier, 6 rows
Roving Package	Max. Φ152X406	Roving bobbin dia.:150mm ( for 6 rows )
Spindle	Aluminum adapter spindle JWD7111ES-19
Balloon-control ring	without	1800rpm
Electric control	By Inverter and PLC	PLC
Power	3-phase, 4-wire, AC 380V, 50HZ	380V±10%,50HZ
Doffing	With Auto-doffing	With automatic reverse and bobbin-ready unit
Main motor	45KW and 55KW for 1200s	1008spindles/45KW, 1200spindles/55KW
Suction motor	7.5KW	suction motor: 7.5kw,
Overall dimensions(mm)	40840 X 1200 X 1835mm/ 1008spindles for 1008s 47560 X 1200 X 1835 mm/1200spindles for 1200s

Company Profile
Qingdao Hongda Textile Machinery Co., Ltd (here after referred to as QDHD)is the subsidiary company ofJingwei Textile Machinery Co. Ltd. It is a large-scale backbone enterprise of textile machinery manufacture,as well as an important manufacturing base for carding machinery and auto-winder.
The Technology Center of QDHD is certified as the National Technology Center. Blowing-Cardingmachinery wins the First-Class Scientific and Technological Progress Award issued by China Textile IndustryAssociation and is the promotion program in The Ninth Five-Year Plan of the State Science and TechnologyCommission. The three leading products of QDHD-Carding Machine, Blowing-Carding Machine and Auto-winder, have all passed the ISO9001 quality system authentication, winning QDHD the honor of "PioneerEnterprise of National Quality Control".
Facing the new situation, Qingdao Hongda Textile Machinery Co. Ltd will be committed to continuouscontribution to the development of Chinese textile machinery, the technological progress of the Chinesetextile industry and the improvement of its international competitiveness by executing new initiatives andadvancing with times.

---
