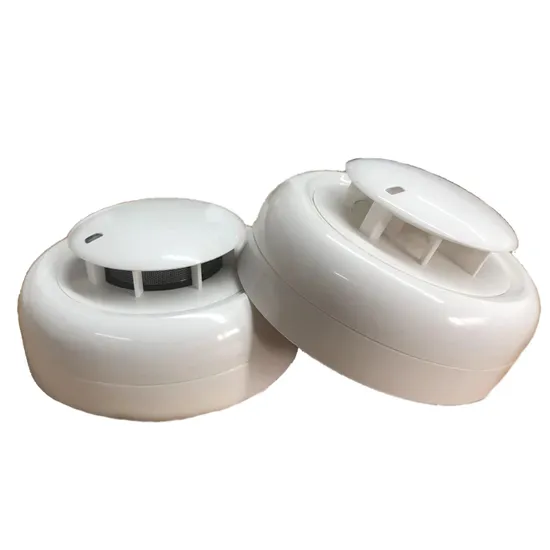

Low Price Smoke Detector CD2011 for Fire Alarm System

US$2.40
2,000-4,999 Pieces
US$2.30
5,000-9,999 Pieces
US$2.15
10,000+ Pieces

Basic Info.

Model NO.
CD2011
Working Mode
Optical Smoke Alarm
Certification
ISO, RoHS
Application
Indoor
Working Principle
Electro-Optical Type
Transmission Mode
Cable
Color
White
Weight
84.5g/Set with Base
Dimensions
93.5mm(Dia. )X46.2(Ht) with Base
Certificate
En
Humidity
0 to 93% Rh,No Condensation or Icing
Operating Temperature Range
-10ºC to 55ºC
Transport Package
Box
Specification
93.5mm(dia. )x46.2(ht) with base
Trademark
Sentek
Origin
Ningbo China
HS Code
8531100000
Production Capacity
100000/Month

Product Description


Product Description:
Product Summary:
CD2010 serial is a conventional smoke detector adopting non-polarity 2-wire technology. The design incorporates a highly integrated 8 bit professional MCU which provides powerful analysis & judgment capacity and reliability, Through the firmware, the detector can automatically compensate the external environmental parameter changes, synthesize various information, carry on the interference flier, realize quick and accurate fire warning,
Product Features:
• 2-wire (LED Continuously Emitting Red Light)
• Durable sensor head, no need for replacement
• Wide voltage range, and stable output
• Easy installation
• Advanced detection and smoothing algorithms
• Sleek low-profile housing design
• Drift compensation
• Low cost, high performance
• Reliable early warning of a fire condition
• Five-year limited warranty
Product Specification:
Model 2/4 wire Voltage
DC
(Min./Max.)
Standby
Current
Smoke Sensitivity Alarm
Current
Reset
Time
Reset
Voltage.
CD2010/CD2011 2 10~33V <50μA@24V 0.1~0.16dB/m 37mA±2mA@24V less than 2 seconds
less than 3 volt

Technical Specification:
Smoke Sensitivity 0.1~0.16dB/m(EN standard)
Storage Temperature Range -20°C to 70°C
Operating Temperature Range -10°C to 55°C
Humidity 0 to 93% RH, no condensation or icing
Dimensions 93.5mm (dia.) x 46.2mm (ht) with base
Weight 84.5g/set with base

Packaging:100pcs/canton or packed according to customers'request
Shipping Details: 25days
