US$3,500.00-9,800.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
RD3207(3207P/3208/4008/3209/3210/4010/3213)
Structure

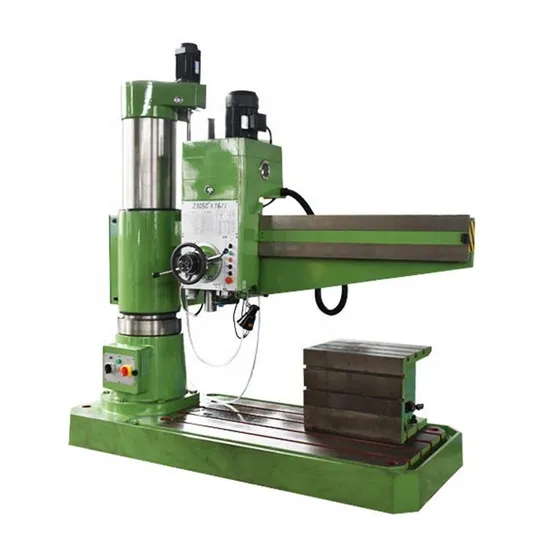

Radial Drilling Machine
Controlling Mode
Artificial
Certification
CE, ISO 9001
After-Sales Service Provided
Engineers Available to Service Machinery Oversea
Transport Package
Wooden Case
Specification
2040x750x2360mm
Packaging & Delivery
Package Size
204.00cm * 75.00cm * 236.00cm
Package Gross Weight
2000.000kg
Product Description
Product Description
Product Description
Characterc
1) With wide range of speed and feed, with manual, power and fine feeds. The feed of machinery are very easily engaged and disengaged at any time.
2) With safe and reliable feed safety machine, all parts easy operation and change. All controls centralized on the head stock easy operation and change. Clamping for assemblies and speed change of spindle achieved by hydraudic power.
3) Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
4) Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of materia for basic parts.
5) Spindle parts are made by special high quality steel heat treatment which made by first class equipments, ensuring high strength and durability.
6) Main gears are machining by gear grinding, ensuring high precision and low noise.
Standard accessories
1) Box shape worktable
2) Taper sleeve
3) Tool releasing Wrench
4) Drift
5) Eyelet bolts
Special accessories
1) Quick instead chuck
2) Tapping chuck
3) Grease gun
| | | 15104 |
| Model | | Z3050x16 |
| Max. drilling diameter | mm | 50 |
| Distance between spindle axis | Max | mm | 1600 |
| and column | Min | mm | 350 |
| Distance between spindle end | Max | mm | 1210 |
| and working surface of base plate | Min | mm | 350 |
| Spindle taper (Morse) | | No.5 |
| Spindle travel | mm | 315 |
| Spindle speeds steps | | 16 |
| Range of spindle speeds | r/mm | 25-2000 |
| Spindle feeds steps | | 16 |
| Range of spindle speeds | mm/r | 0.04-3.2 |
| Power of main drive motor | kw | 4 |
| Voltage | V | 380, 440/220, 420 |
| Frequency | Hz | 50, 60 |
| Weight | N.W | kg | 3500 |
| G.W | kg | 3850 |
| Overall dimensions (L x W x H) | cm | (219) 249(289) x 104 x (243) 284 |
| Dimesions (L x W x H) | cm | (260 ) 292(332) x 123(258) x 288 |
