US$10,000.00-15,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Piston Filling Machine
Automatic Grade
Fully Automatic
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Multi-Room Feeding
Dosing Device
Capacity Cup
Filling Principle
Atmospheric Pressure
Packaging Container Lifting Structure
Pneumatic Lifting
Packaging Material
Composite Materials
Automaticity
Completely Automatic
Advantage
Easy Operation High Efficiency
Transport Package
Strong Wooden Cases
Specification
10-100ml filling machine
Trademark
shanghai PAIXIE
Production Capacity
3000 Bottles Per Hour
Packaging & Delivery
Package Size
850.00cm * 700.00cm * 600.00cm
Package Gross Weight
210.000kg
Product Description
Product Description
OVERVIEW :

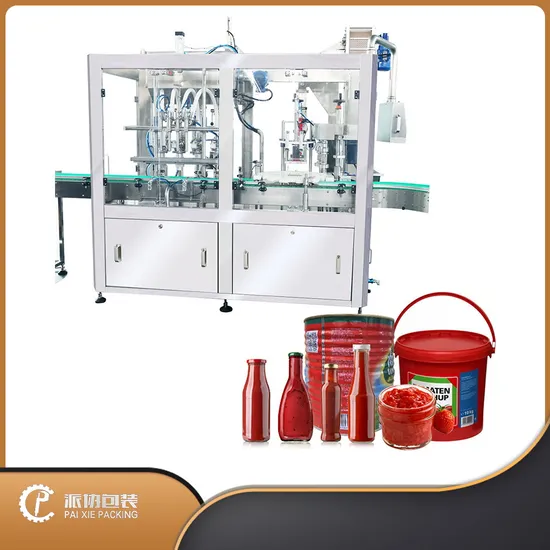

The new PX-BFC80 Smart Automatic tomato sauce honey jam glass jar paste servo driving filling machine is able to fill 30-40 fills per minute liquid products, depending on fill volume. Easy adjustable for 10-100 ml vials. The four nozzles filling station adopt piston pump, specially suitable for different viscous liquid materials, such as oil, perfume, syrup, etc. Driven by servo motor system, filling with high accuracy of ±1%. Insertion station includes closed cabinet with vibrating bowl feed for 10-50 mm diameter caps. No bottle, no filling, inserting or capping.
MAIN PARAMETERS :
| Model | PX-BFC80 |
| Filling material | tomato sauce honey jam glass jar paste etc |
| Yield(pcs/min) | 30-40 BPM (customized) |
| Filling heads | 1-4 (customized) |
| Filling pump | Piston pump |
| Capping heads | 1-2 (customized) |
| Work voltage | 110/220/380V 50/60HZ (customized) |
| Air presstion | 0.6MPA |
| Filling Accuracy | ±1% |
| Capping rate | 99% |
| Power | 2-3.5KW |
| Driving | Servo motor / Explosion proof motor (customized) |
| Direction | Left -rigth /right-left |
| Pump volume | 10-100 ml (customized) |
| United size | 1200*900*2000mm |
| Weight | 500kg |
| Material | Contacting parts SS304/SS316 (Optional) |
| HMI | 7.5" Color Touch Screen Control |
| Protection | Comprehensive Safety Alarm System |
| Speed controller | Variable Speed Controls |
| Detecting system | Vial Detector & Counter |
