Super-Above 1200kw 1500kVA Diesel Generator with Cummis Engine Famous Alternator

Product Description

Product Description
Super-aboveBig Power Plant 1200kw/1500kVA Diesel Generator with low price
Product Description
Configuration Spec.
1) Powered by brand new original water cooled diesel engine.
2) Brand new STAFORD, LEROY SOMER or GENLITEC single bearing 3 phase alternator with IP23 and H insulation class.
3) Original 50ºC radiator with engine driven fan mounted on skid.
4) Delixi or Chint branded case circuit breaker mounted.
5) Heavy-duty fabricated steel based frame with built-in fuel tank for at least 8 hours continuous running.
6) Complete set mounted on a based frame with anti-vibration mountings.
7) Industrial 9 dB muffler exhaust system with blexible connects and bellows.
8) Based frame with fuel, oil and coolant drain cocks for easy maintenance.
9) 12/24V DC electric start system with free maintain battery & smartgen brand battery charger.
10) Set mounted automatic control panel, with SMARTGEN brand AMF controller module for automatic start & stop.
11) Test report of generator, set of drawings and manuals.
12) CE, ISO9001 approved
Power by CUMMIS engine Product Parameters
1200kw genset 1500kva diesel generator

Diesel generator Details
Model	SA-1280GF
Power	1200kw/1500kva
Frequency	50Hz/60Hz
Voltage	4000/230v(voltage can be customized)
Optional Type	Open/soundproof/trailer
Size of Open type	5600*2150*2600mm
Weight of Open type	11000kg
With Diesel Engine
Brand&model	KTA50-GS8
Standby Power	1429kw
Cylinders	16 in V arrangement
Bore*Stroke	159*159mm
Displacement	50L
Lubrication Oil Capacity	204L
Fuel Consumption at 100% Load	205g/kw.h
Speed Governor	Electronic
With Alternator
Optional Brands	Staford/Leroy Somer/Mecc Alte/Marathon
Exciter type	Single bearing,brushless,Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Insulation Grade	H
Protection Grade	IP23
With Controller
Optional brands	Deepsea/ComAp/Smartgen

More Pictures
Details
Types you can choose

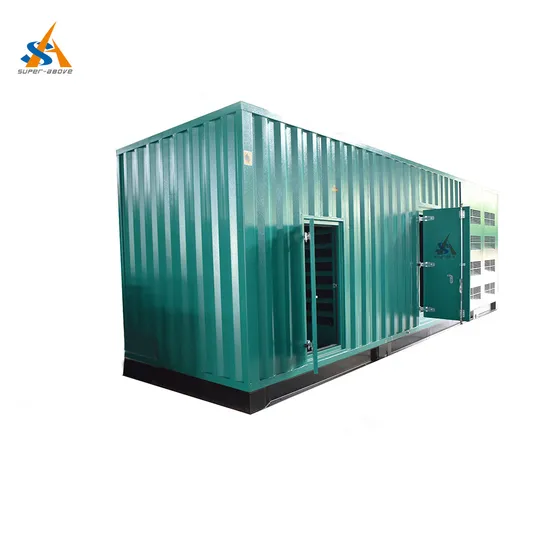

All design for Open, Silent, Trailer, container type generator
