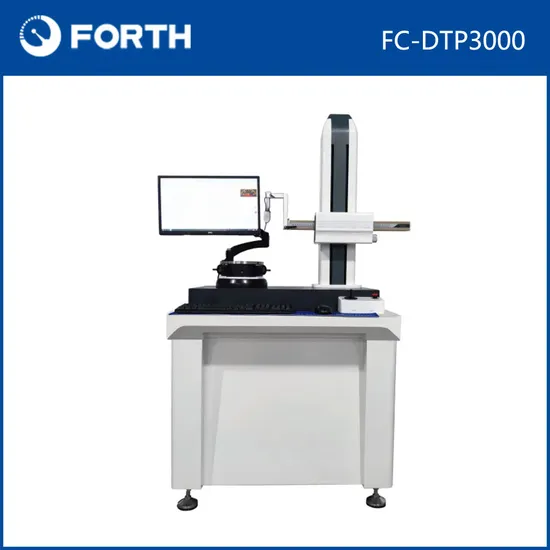

Lab Instrument for High Precision Roundness Testing

Product Description

main function Measurement and Analysis Functions by Guangdong FORTH Science Technology Co., Ltd. Company Name: Guangdong FORTH Science Technology Co., Ltd.
Key Features: Measurement Function: roundness, coaxiality, concentricity, runout, verticality, parallelism, flatness Analysis Function: surface ripple degree, spectrum analysis, wave height analysis, adjacent slice beat, partial segment difference Rounding Assessment Method (4 kinds): minimum area method, least squares method, minimum external circle method, maximum inner circle roundness Filter Mode: 1, 1-500, 1-150, 1-50, 1-15 Wave Level Filtering Mode: 3-16, 3-17, 15-500, 17-100 Filtered Form: Gaussian (ISO standard) Product Parameters

Item		parameter
measuring range	Maximum diameter	ф400mm
	Minimum inner diameter	ф3mm
	maximum height	500mm
Spindle precision	radial error	±(0.025+5H/10000)μm
	Axial error	±(0.02+6X/10000)μm
desk	Mesa diameter	φ200mm
	tactical diameter	φ420mm
	load capacity	50Kg
	justification range	± 2mm; ± 1
	spin velocity	0-12 rpm
Horizontal arm	Horizontal moving distance	180mm
	Movement speed	0.5-6mm/s or manual operation
Sensor	Range	500 μ m (radius difference)
	resolution	0.005μm
	Probe	φ 2mm gemstone ball head (more option)
	dynamometry	1-12g
	Sensor direction	Both parties to / ± 45
data acquisition		Import grating at 14400 points / week
amplified factor		Any to a maximum of 200,000 times

Detailed Photos
Company Profile Welcome to Guangdong FORTH Science Technology Co., Ltd. We specialize in the sales and maintenance of a wide range of instruments, including length measuring instruments, optical instruments, shape instruments, material testing instruments, and chemical analyzers for food and medicine.
About Us Founded in 2005, our headquarters is located in Guangzhou, a city known for its economic development and excellent transportation infrastructure. We have established partnerships with renowned global instrument brands like FISCHER, ZEISS, BRUKER, and more, ensuring that we offer high precision instruments and exceptional user experience.
Our Products Measurement instruments: Projectors, altimeters, surface roughness measurement instruments, and more. Material testing instruments: Color difference meters, gloss meters, hardness testers, and more. Chemical analysis instruments: Spectrometers, analyzers, chromatographs, and more. Our Mission We are committed to providing accurate and advanced measurement solutions through technological innovation. Our goal is to exceed customer expectations and create value for society.
Business Concept At Guangdong FORTH Science Technology Co., Ltd., the user is supreme, quality comes first, and we strive to deliver the best service to our customers.
Contact Us We warmly welcome customers from all over the world to explore our products and services. Your satisfaction is our ultimate goal!

---
