Graphical OSD Menu Set Image Horizontal, Vertical, Mirror and Normal viewing, automatic cycle mode, night mode settings, reversing ruler settings, reversing the priority function is triggered

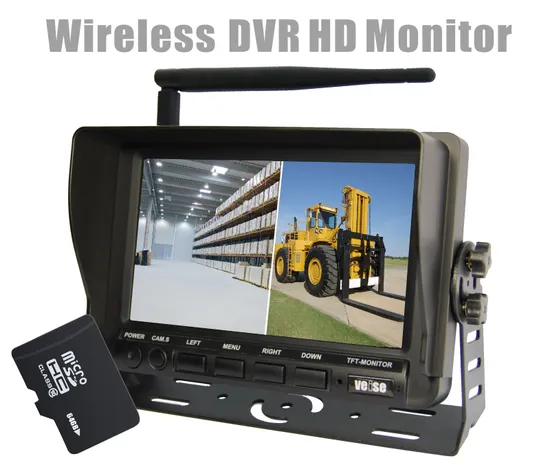

| 720P Wireless DVR Receive Monitor(Model:MWHD-772D) |
| 7" HD DVR Screen Monitor with Removable Sun Visor |
| Built in 2 CH 2.4GHz Digital Wireless Receiver |
| Line of Sight Range Up to 300m |
| Built-in DVR function |
| Built-in TF card, maximum support 256GB(2-channel camera 64GB card, can record about 240 hours) |
| Video format: AVI |
| Operation Frequency:2400 ~ 2483.5MHz |
| Receiving Sensitivity:≤-86dBm(1MHZ QPSK MD300RE) |
| Overlapping Hopping Channel:80 |
| Color System:PAL/NTSC |
| Display Resolution: 1024(H) X 600(V) dot |
| Wide view angle(CR>10):(up/ down): 50/70 (left/right): 70/70 |
| Back-light : Single LED 600cd/m2 Brightness |
| Contrast ratio: 500:1 |
| Operating temperature: -20ºC to +70ºC |
| Storage temperature: -30ºC to +80ºC |
| Free Operating Voltage: DC8~32V |
| External dimensions:L*W*T(207X149.5X85)mm(without mounting) |
| Weight Approx: 600g |
| 720P Digital Wireless Waterproof IR Camera(MODEL:CWHD-161M*2) |
| Image Type: 1/3.7 inch Color CMOS |
| Built in 2.4GHz Digital wireless transmitter |
| Transmission Power:18dBm with Power control |
| Line of Sight Range:≤300M |
| Horizontal Resolution:720P |
| Effective pixel:PAL:1280(H)X960(V) |
| Usable Illumination : 0Lux ( Built in 6pcs IR LED's for Picture Support in the Dark) |
| Free viewing angle: 120° |
| IR-CUT: Automatic switch, day and night mode |
| Waterproof: IP69K |
| Shockproof: 10G |
| Free Operating Voltage: DC8-32 Volts |
| Dimensions: 103.5(W) x 89(H) x 67(D) mm |
| Weight : 450g |
| Accessorie |
| U- Support Bracket,Angle Adjustment Screw,Removable Sun Visor,Electrical Connecting Cable,Antenna*3,User's Manual |
