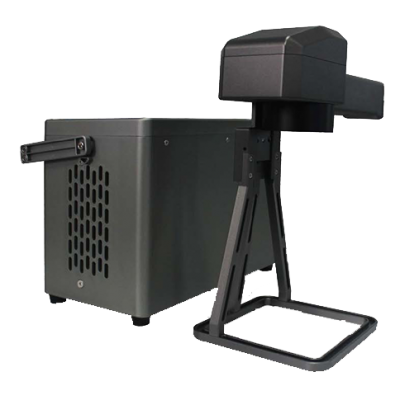

Product Detail Description: HBN Q8A Model Handheld Smart Laser Marking Machine
Overview
The HBN Q8A Handheld Smart Laser Marking Machine is a portable, battery-powered, and fully autonomous marking solution designed for precision and versatility. Its lightweight, ergonomic design makes it ideal for marking large, heavy, or hard-to-move workpieces across various industries. With a powerful rechargeable battery and advanced laser technology, it ensures efficient and cable-free operation.
Key Features
Portable & Cordless Design:
Powered by a 24V rechargeable lithium battery, offering extended operation without cable restrictions.
Lightweight marking head (1.25 kg) and ergonomic grip for comfortable handling.
High-Performance Laser:
Multiple Power Options: Available in 19.3W (GBA-20), 26.5W (GBA-30), and 50W (GBA-50) models.
Laser Wavelength: 1064nm ±5nm for precise and durable markings.
Marking Range: 76mm x 76mm (adjustable based on model).
Precision & Speed:
Engraving Depth: Up to 1mm (depending on material and settings).
High-Speed Marking: Up to 7000mm/s for efficient workflows.
Minimal Line Width/Character Height: 0.1mm line width, 0.15mm character height.
User-Friendly Operation:
Supports USB connectivity and Linux operating system.
Compatible with text, patterns, QR codes, barcodes, serial numbers, and graphics.
Durable & Compact:
Includes a portable storage case for easy transport.
Total machine weight: 6 kg (compact for handheld use).
Built-in Cooling System:
Air-cooled design ensures stable performance during prolonged use.
Technical Specifications
CategorySpecifications
| Model Options | GBA-20 (19.3W) | GBA-30 (26.5W) | GBA-50 (50W) |
| Laser Parameters | Wavelength: 1064nm | Power Stability:<5% | Pulse Frequency: 27–40 kHz |
| Optical Properties | Marking Range: 76x76mm | Engraving Speed: ≤7000mm/s | Resolution: ≤0.05mm |
| Battery & Power | Input Voltage: 100-240V AC, 50/60Hz |
|
|
| Software Support | Text, Patterns, QR Codes, Barcodes, Serial Numbers, Graphics (supports multiple file formats) |
|
|
| Dimensions & Weight | Control Box: 256×155×200mm | Marking Head: 1.25kg | Total Weight: 6kg |
Applications
The HBN Q8A is widely used in industries requiring high-precision and portable marking, including:
Automotive Manufacturing
Aerospace Industry
Metal Processing
Construction & Machinery
Household Appliances
Energy Sector
>>
