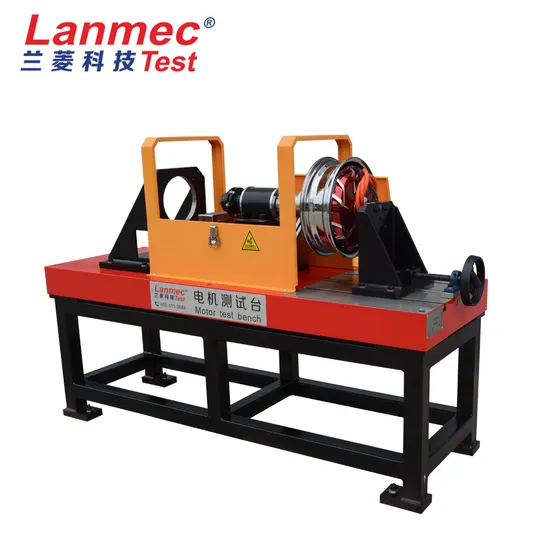

Lanmec Technology′ S Powerful Manufacturers Self-Exported in-Wheel Motor Test Benches

Product Description

Product Description

Eddy current brake/dynamometer	Rated Power	Rated torque	Rated speed	Maximum rotational speed	Turning inertia	Maximum excitation voltage	Maximum excitation Current	Cooling water pressure	Flow of the cooling water
DWZ/DW-0.75	0.75	5	2000-2600	16000	0.002	80	3	0.1~0.3	1
DWZ/DW-3	3	10	2000-2600	14000	0.003	80	3	0.1~0.3	2
DWZ/DW-6	6	25	2000-2600	14000	0.003	80	3	0.1~0.3	3
DWZ/DW-10	10	50	2000-2600	13000	0.01	80	3	0.1~0.3	4.5
DWZ/DW-16	16	70	2000-2600	13000	0.02	80	3.5	0.1~0.3	6.5
DWZ/DW-25	25	120	2000-2600	11000	0.05	80	3.5	0.1~0.3	15
DWZ/DW-40	40	160	2000-2600	10000	0.1	90	4	0.1~0.3	25
DWZ/DW-63	63	250	2000-2600	9000	0.18	90	4	0.1~0.3	45
DWZ/DW-100	100	400	2000-2600	8500	0.32	120	4	0.1~0.3	60
DWZ/DW-160	160	600	2000-2600	8000	0.52	120	5	0.1~0.3	100
DWZ/DW-250	250	1100	2000-2600	7000	1.8	150	5	0.2~0.4	180
DWZ/DW-300	300	1600	2000-2600	6000	2.7	150	5	0.2~0.4	210
DWZ/DW-400	400	2200	2000-2600	5000	3.6	180	10	0.2~0.4	300
DWZ/DW-630	630	3600	2000-2600	5000	5.3	180	10	0.2~0.4	450

Related Products

Main application:
DWZ disc eddy current brake is mainly used as load in loading dynamometer equipment. it is experimental apparatus which can measure the dynamic mechanical properties, especially in dynamic loading test whose power value is small or tiny, also can be treated as suction power devices of other dynamic devices.
DW series disc eddy current dynamometer is, is that add device for measuring torque and rotational speed on DWZ series disc eddy current brake, it is experimental apparatus which can measure the dynamic mechnical properties, especial in dynamic loading test whose power value is small or tiny.
CW eddy current brake as a load is mainly used to measure the mechanical characteristics of inspection equipment, it and other control instrument (including loading apparatus, torque speed sensor and torque power acquisition instrument etc.) can be composed of eddy current dynamometer can be used for performance testing of the internal combustion engine, motor, gas turbine, automobile and its dynamic mechanical components, compared with other power measuring device, the CW series power measuring device has the advantages of reliability, high stability and practicability.
