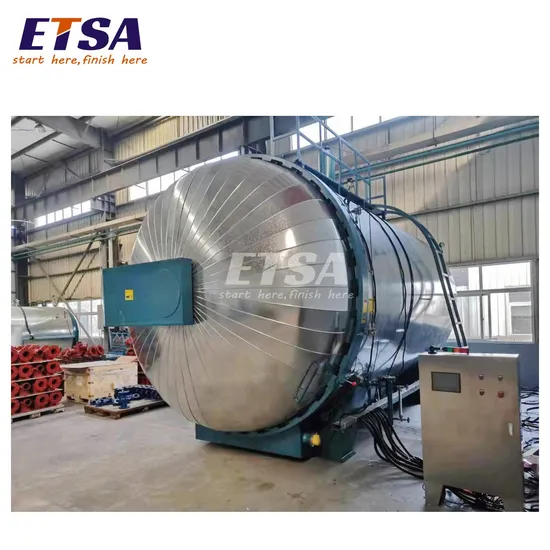

Industrial Electric Pressure Rubber Vulcanizing Autoclave for Rubber Radiator Hose Curing

Product Description

Product Description

Vulcanizing autoclaves are used by the rubber industry to convert natural rubber into a cured and cross-linked vulcanized rubber product. Vulcanizing autoclaves can also be used to cure plastics. Vulcanizing autoclaves use live internal steam, a mix of live steam and hot air, or hot-air only. Vulcanizing autoclaves are used to cure tires, hoses, and many other products that might not lend themselves to a standard press-based compression molding process.
Depending on the type of rubber, the vulcanizing process can occur from room temperature (ie. Silicones) up to 350 °F (170 °C) or more (ie. Tires).
TYPES OF VULCANIZING AUTOCLAVES OFFERED BY ETSA (Evertech Sasi)
Vulcanizing autoclaves are available in several variations to suit different vulcanization needs. For example, autoclaves with indirect heat transfer systems employ a heat exchanger to distribute heat generated by an external heat source to the working envelope of the autoclave, while autoclaves with direct heat transfer systems have heating elements that are located within the autoclave itself. Additionally, the heat can be generated through electric, steam, gas, or thermal oil means.
At ETSA, we offer the following types:
--Indirect electric heat autoclaves
--Indirect steam heat autoclaves
--Direct steam heat autoclaves

Application
Widely used in vulcanization of rubber products, SBR thermoplastic as well as the carbonization and degreasing of bamboo, such as, rubber, cable, printing and dyeing, chemical, building materials and other industries. Mainly used in rubber products, rubber hose, rubber roller etc.
Used in tire, rubber sleeve cable, rubber shoes, rubber hose, rubber roller, rubber belt, belt, conveyor belt, rubber ball, rubber lining, rubber cloth, rubber head, gloves, red flag, etc.
Wood drying, wood preservative, wood fire prevention, wood impregnation, wood color, wood cooking, bamboo carbonization, wood modification, wood optimization, wood fire retardant
Also used for Yarn thread, mane, socks heat setting, high pressure modification and degreasing of horn and bone, feather hydrolysis, oxidation treatment of aluminum products, steaming and cooking of carbon materials, asbestos friction materials, gypsum and its products.
Features
HEATING SYSTEMS OPTIONS
We offer vulcanizing autoclaves with three different types of heating systems: direct heat through the use of steam, indirect heat utilizing steam, or indirect heat generated by electricity.
QUICK OPENING DOOR
ETSA autoclaves have hydraulic powered doors that allow for quick and safe opening and locking of the unit. The door systems feature a long-lasting O-ring gasket supported by a locking ring rotation only function that further extends its life. The use of an air system is not needed for the formation of an adequate gasket seal.
BASIC TEMPERATURE AND PRESSURE CONTROLS
Each autoclave comes with a prepackaged temperature and pressure control unit. A 24-hour circular chart recorder is also included.
PROGRAMMABLE LOGIC CONTROLLER (PLC)
Programmable logic controllers (PLCs) provide autoclave operators with greater flexibility in the programming of autoclave process cycles. This quality allows them to optimize cycles to achieve the desired process and product results. The PLC included in ETSA autoclaves have modem hookup capabilities.
QUALITY CONTROL AND SAFETY
At ETSA, we understand the importance of quality and safety in autoclave operations. All of our autoclaves are equipped with state-of-the-art safety features and certified by the ASME & National Board. Additionally, before shipment, each unit is rigorously tested for quality. Even after delivery, our engineers are available for on-line technical support.

Product Parameters

Item	ETSA-RA800	ETSA-RA1200	ETSA-RA1500	ETSA-RA1700	ETSA-RA2000	ETSA-RA2600
Inner diameter(mm)	800	1200	1500	1700	2000	2600
Canister length(mm)	22000	3000	3000	4000	5000	10000
Number of lid sawtooth	12	12	14	14	16	24
thickness of lid (mm)	10	10	10	10	16	14
Thickness of the tank body(mm)	10	10	10	10	12	14
Working pressure(Mpa)	0.8	0.8	0.8	0.8	0.8	0.55
Dimensions(mm)(L*W*H)	22766*1445*1170	4010*1575*1670	3960*2150*2050	4925*2162*2070	6200*2590*2424	11722*3360*4136
Weight(Kg)	5580	2017	2950	3835	6500	16775

Detailed Photos
